Specification
- GVM-FH400B
- Power Consumption: 400W

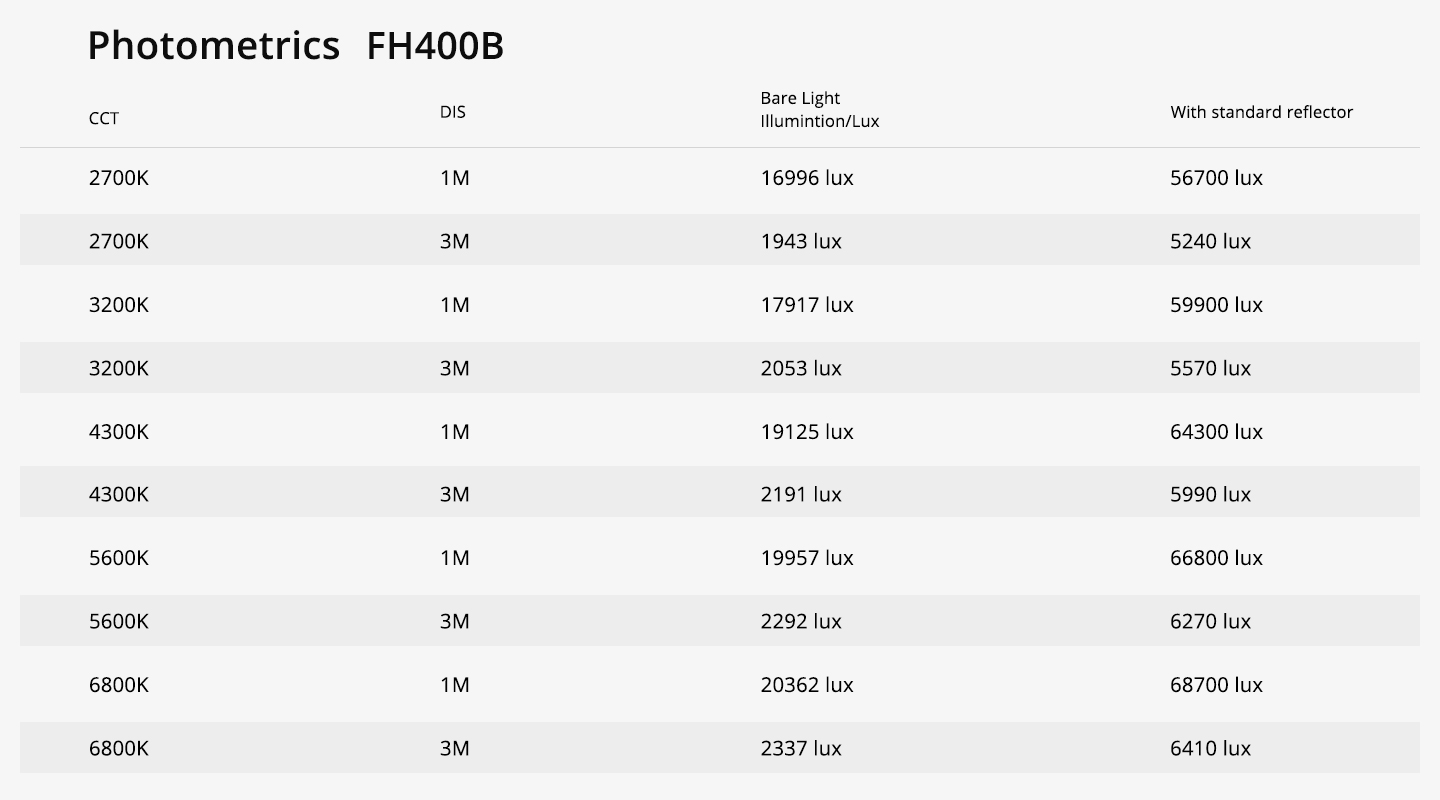

- Max Output: Open face 20362 lux@1m, 2337 lux@3m; Softbox 68700 lux@1m, 6410 lux@3m
- Mount: Bowens + G7
- LED Engine: Bi-Color
- CCT: 2700-6800K
- Color Accuracy: 97+ CRI, 97 TLCI，SSI D32(83),SSI D56(73)
- Modes: CCT, Effects (Only accessible through the App), Source Matching (Only accessible through the App)
- Dimming: Flicker free from 0%-100% in 0.1% increments
- IP Rating: IP65
- Cooling: Passive+Advanced Active Cooling System, with 4 modes: Intelligent, High Speed, Silent, Passive Cooling
- Control: Built-In controller, Bluetooth, DMX (512A + RDM)
-
Connectors:
1x DC In (60V/7A); 2x DMX (In and Out), XLR-5pin; 1x USB type C - AC Voltage: 100 - 240 V~, 50/60Hz
- DC Voltage: 60V/7A
- Housing Material: Aluminum+Engineering Plastics
- Dimensions: 425*120.9*447.8(mm) (incl. yoke); 325.38*120.9*303(mm) (excl. yoke)
- Weight: 6.35 KG
- Controller + Ballast: Integrated into the light head
Download
FAQ
Are the photometrics measured as bare bulb or with a modifier?
GVM does not list the way they tested the photometrics on the GVM Reign FH400B Bi-Color LED Modular Flathead Light.
