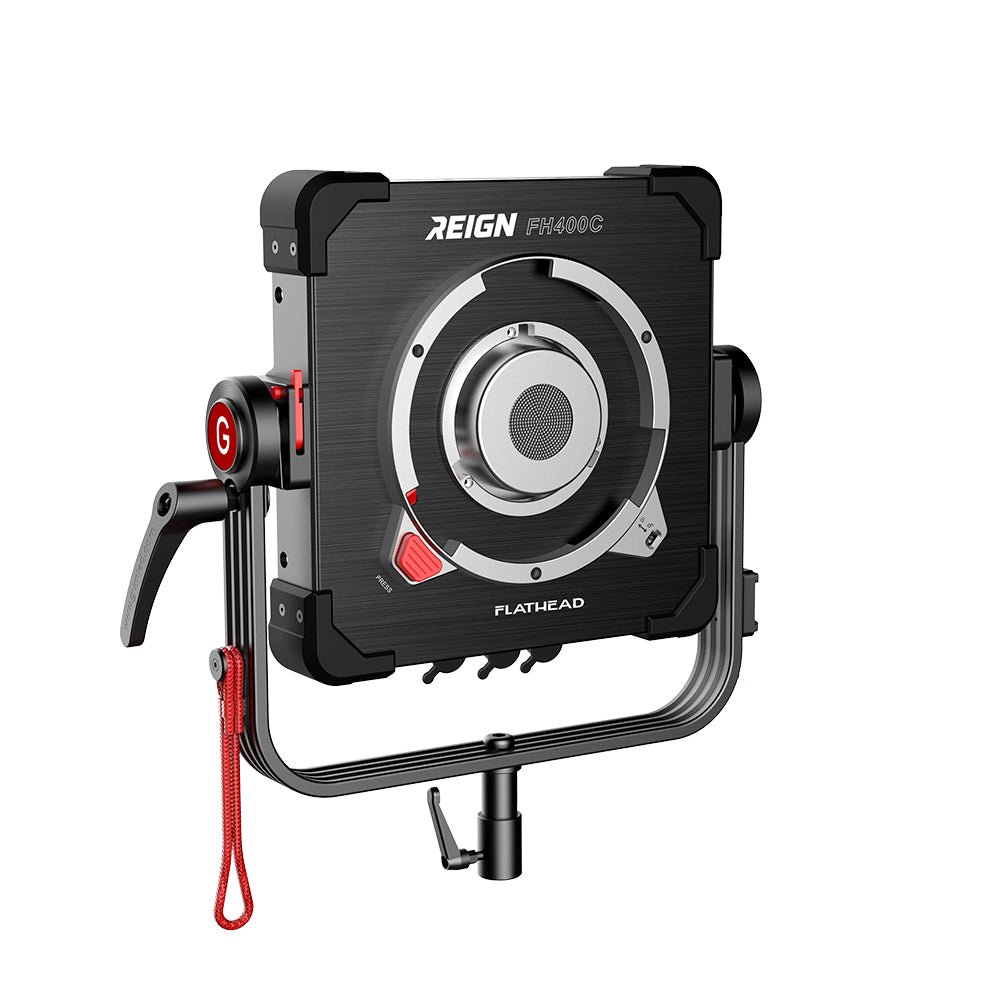

FH400C
- Single-Source COB Technology: Provides full-spectrum RGBWW
control with consistent, focused output. - Ultra-Thin Profile: Designed for tight spaces with no compromise on
performance. - Ultra-wide Color Temperature Range: 2000K – 10000K for accurate
white light in any setting. - Flicker-Free Operation: Perfect for high-speed filming in confined
areas.

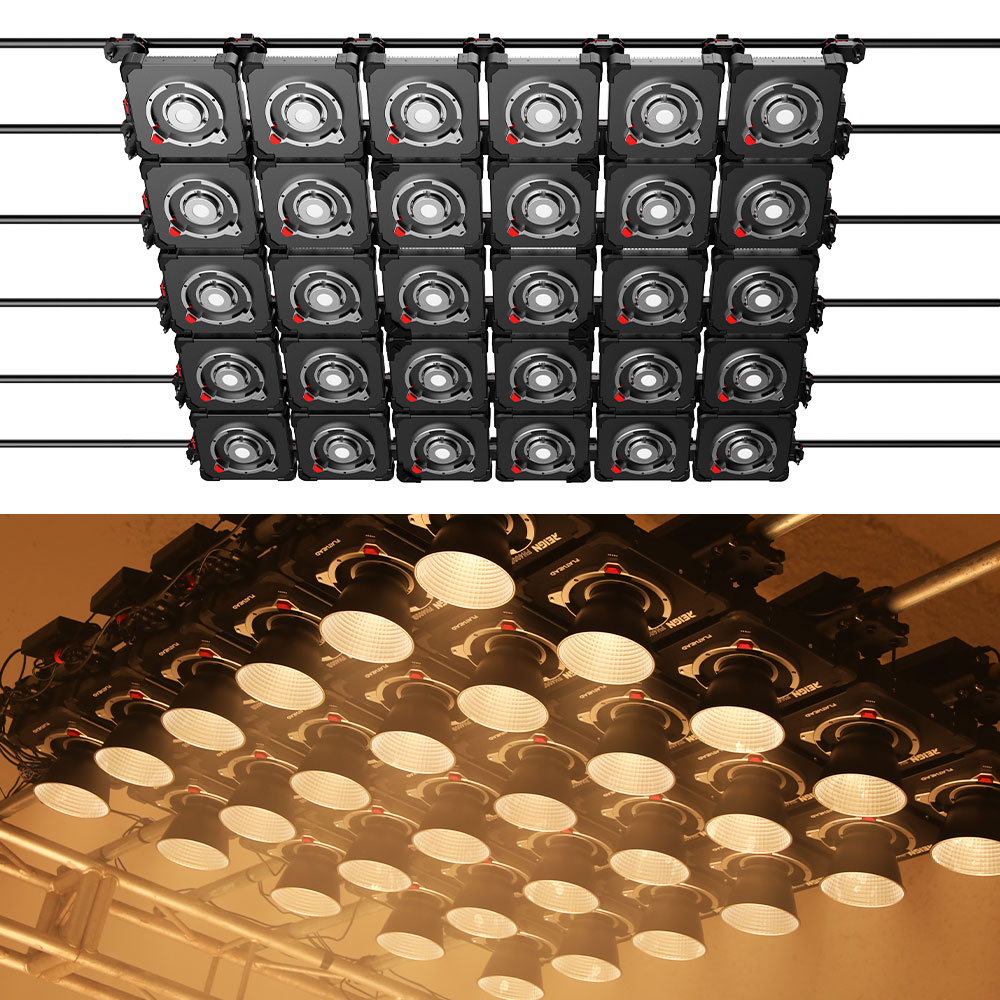

Professional splicing design, easy to build a
large film-level light source system
IP65 waterproof design,
easy to cope with harsh environments
Five-color mixed light RGB mode,
Presenting richer color
performance
400W high-power lighting to meet the needs
of professional film-level light sources

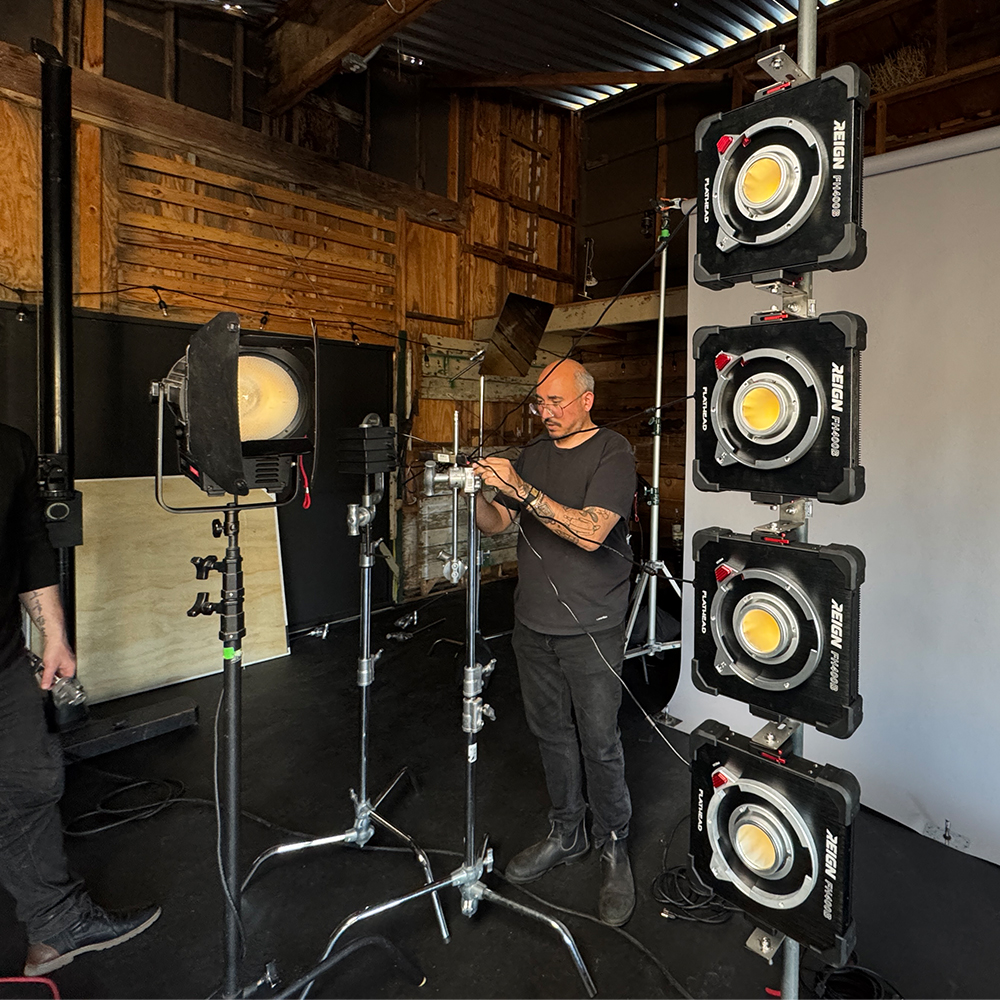

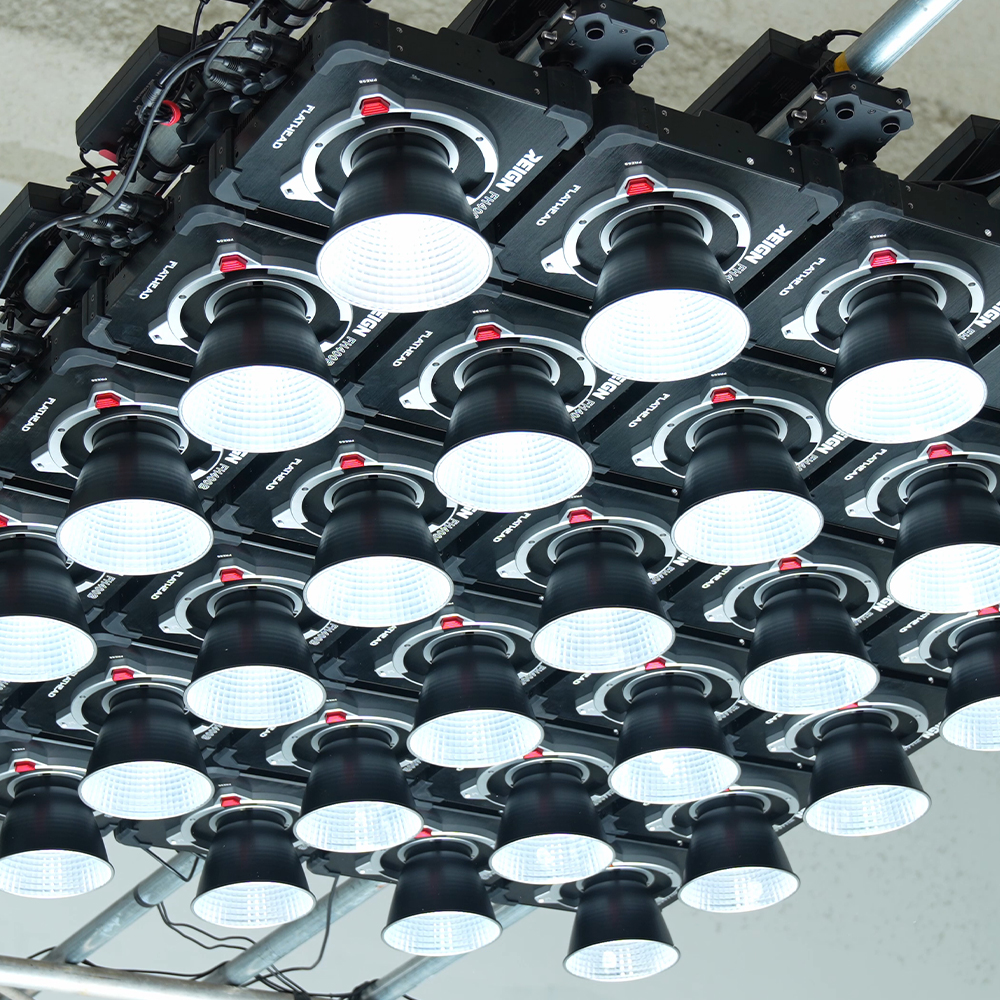

Professional splicing design,
easy to build a large light source system

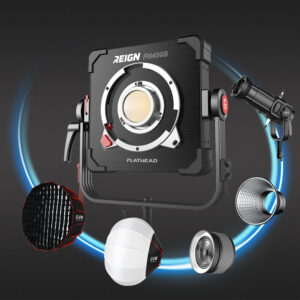

Professional G-mount design,
stable and compatible
with a variety of accessories
DMX & RDM professional control,
remote precise dimming
FH400B
- Single-Source COB Technology: Delivers sharp, consistent lighting with high CRI and TLCI for accurate color reproduction.
- Ultra-Thin Profile: Fits into tight spaces where traditional lights can’t go.
- Color Temperature Range: 2700K – 6800K for accurate white light in any setting.

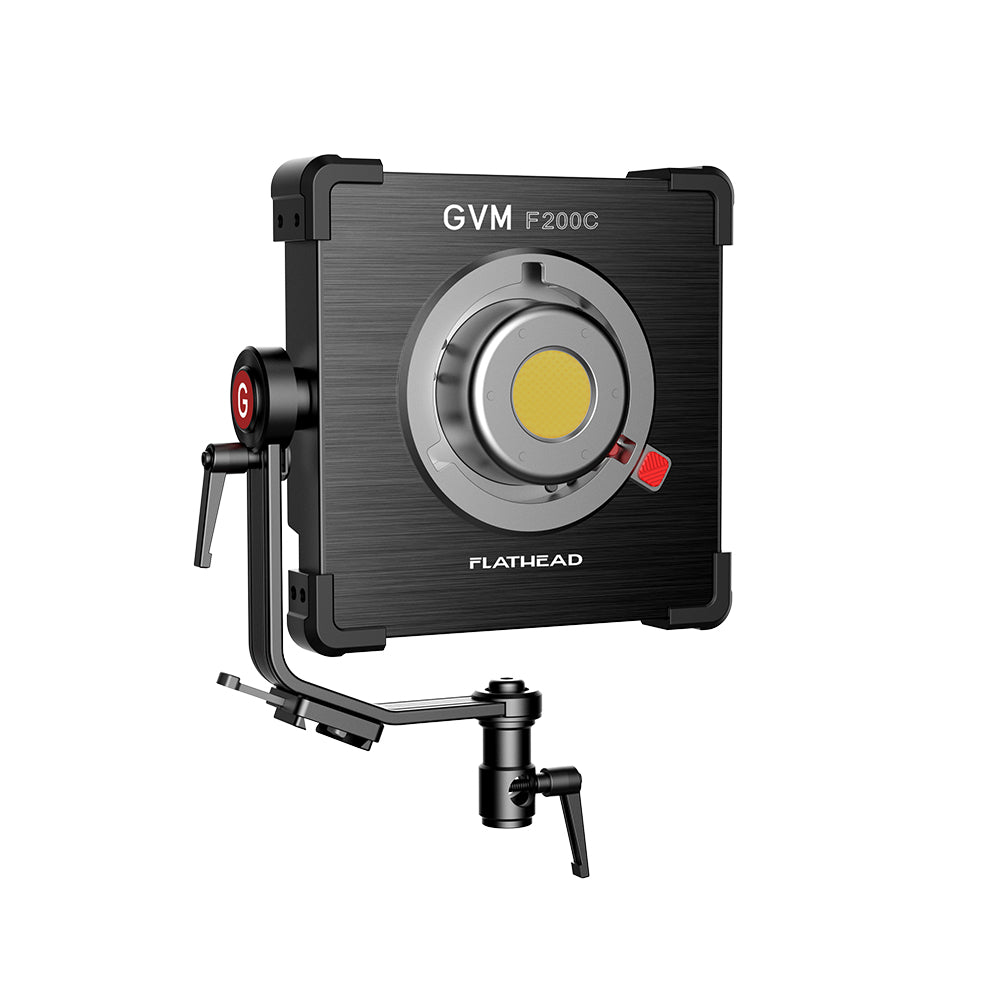

F200C
GVM-F200C adopts 200W high-power COB light source, providing 7240 lux@1m bare illumination, ensuring sufficient light in professional scenes such as studios, film and television production, studios, etc., to meet the needs of high-standard film and television lighting to ensure that the picture is rich in layers and clear details.
Ultra-wide color temperature 2000K-10000K,
precise control of light atmosphere
12 light source matching
+ 16 dynamic light effects,
professional simulation of real light sources
Triple remote control,
intelligent light adjustment
U-shaped buckle stands
The U-shaped brackets can be used to connect the edges of multiple FlatHeads in a stable manner.
U-shaped fasteners
The edges of multiple FlatHeads can be connected in a stable manner using U-shaped fasteners.

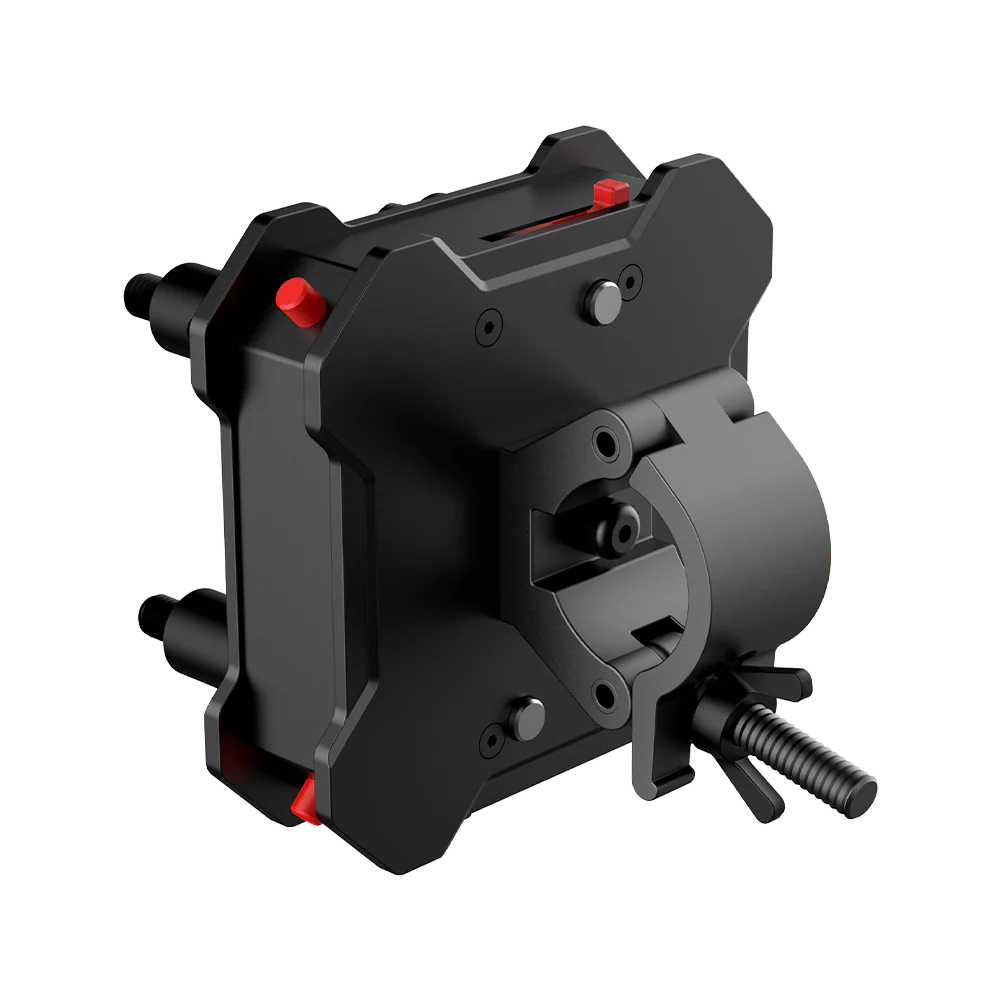

2-Pin Quick Connector
Using the 2-pin quick connector, you can stably connect the edges of 2 FlatHeads

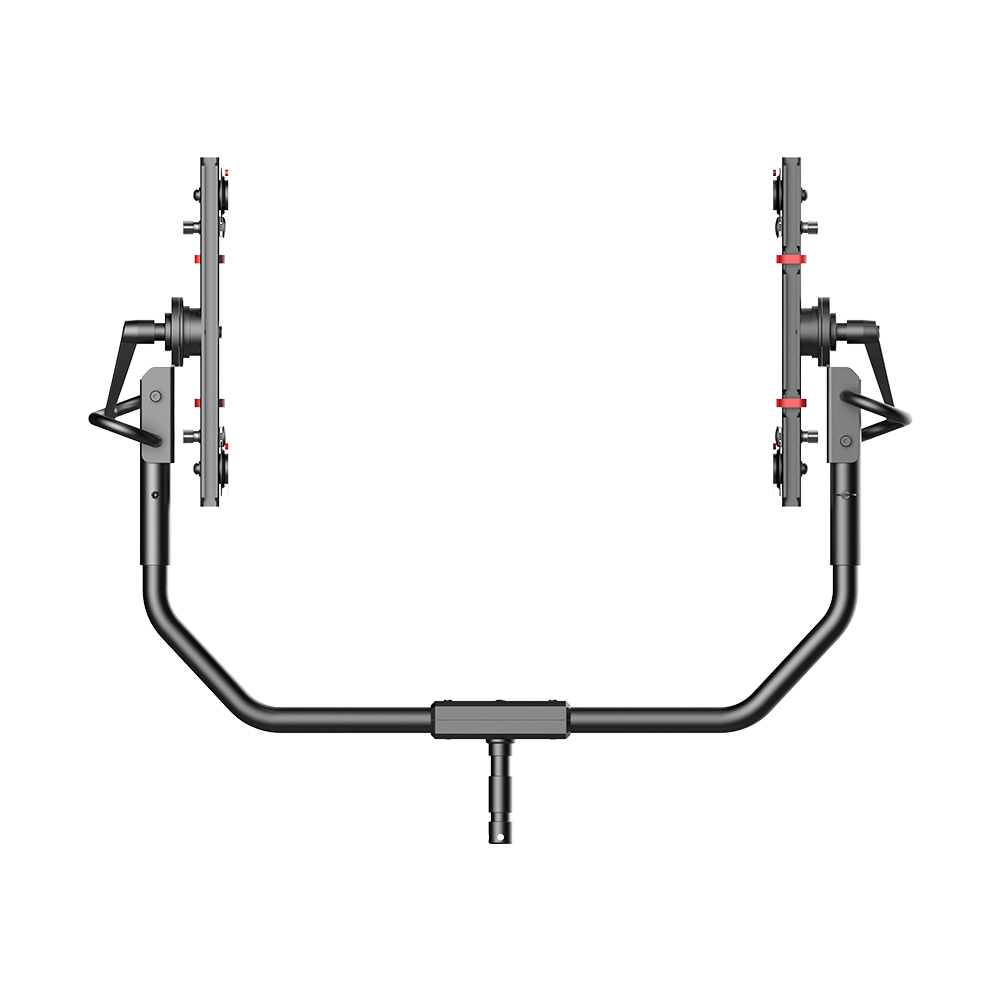

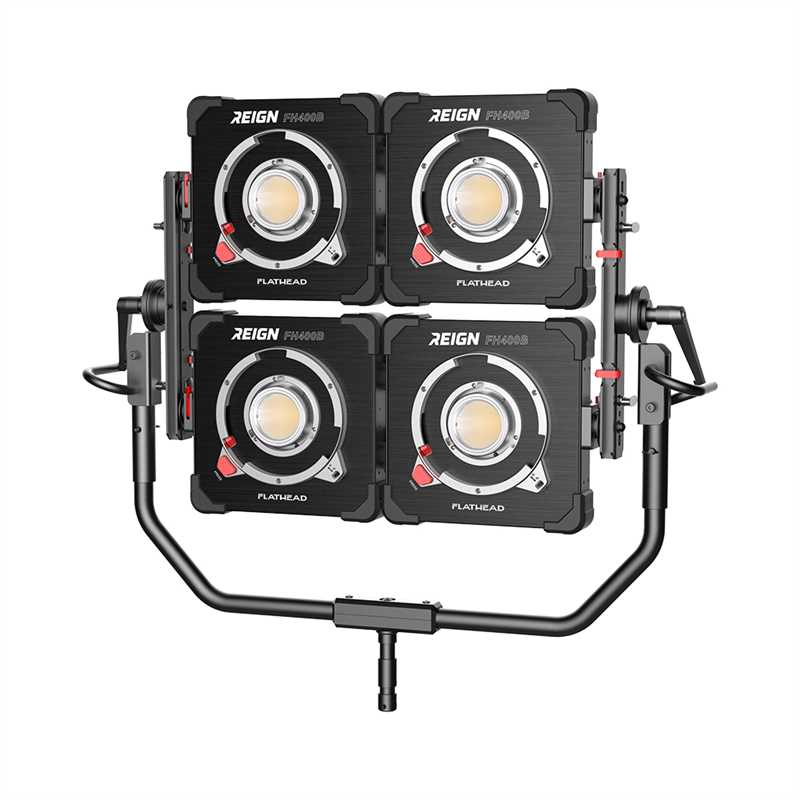

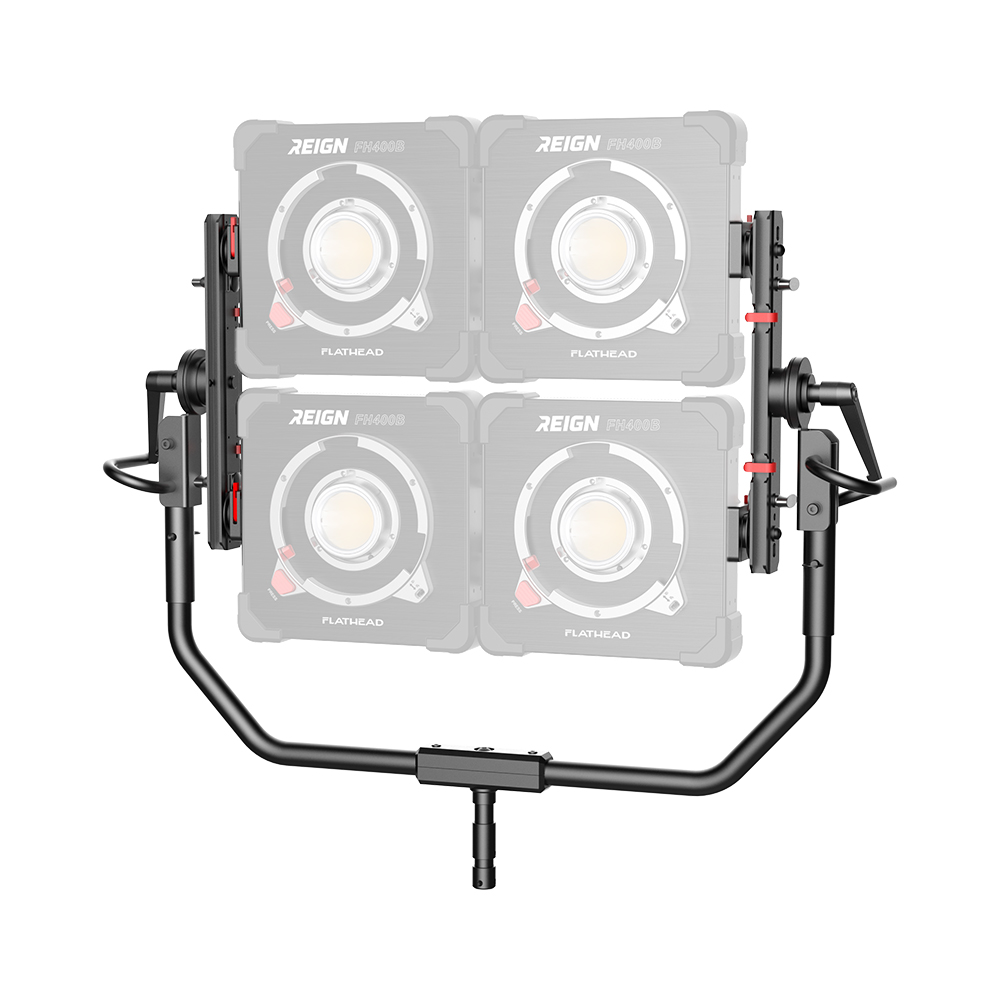

4-Head Multi Yoke
The 4x Multi Yoke Frame is your gateway to scalable, high-output lighting. Designed to hold up to four FlatHead lights, this frame transforms individual units into a cohesive, 1600W powerhouse. Each pair of lights can be tilted independently, offering precise control over light direction and coverage. Whether you’re working in tight spaces or expansive sets, the 4x Multi Yoke Frame delivers unmatched versatility and portability.

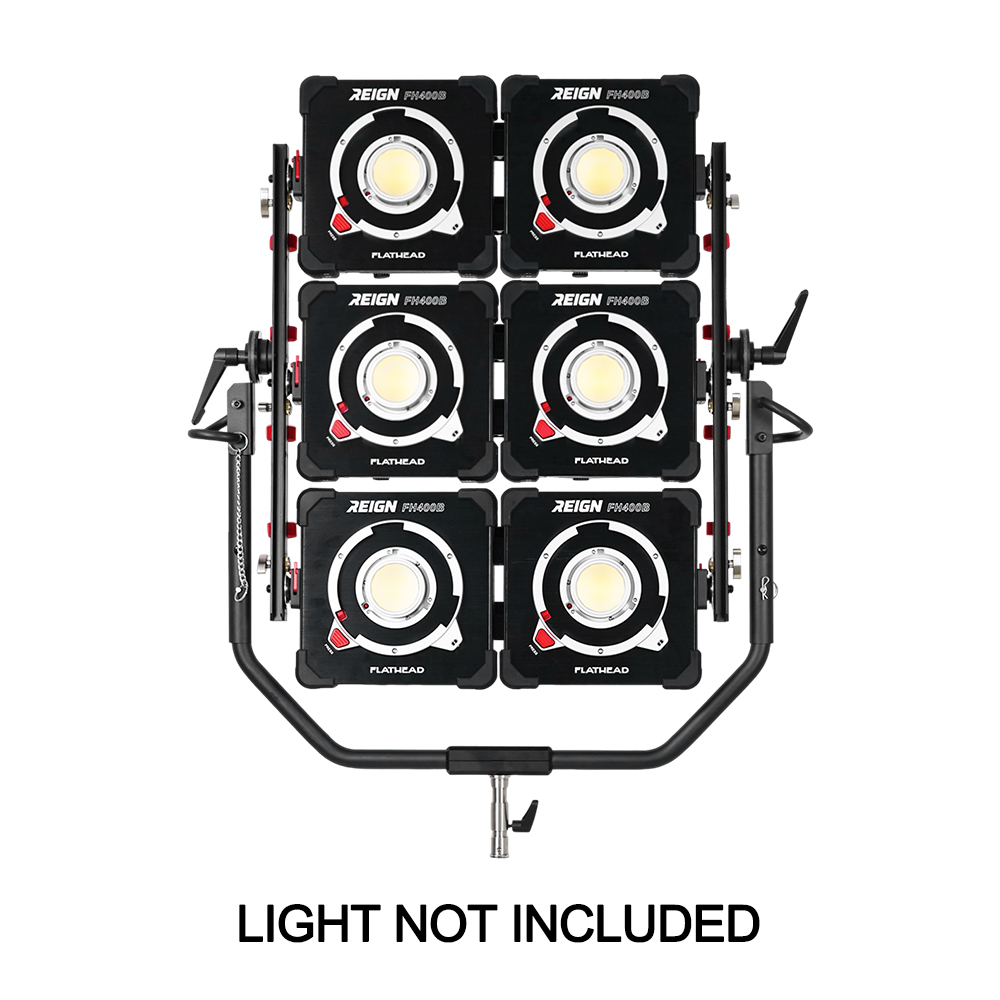

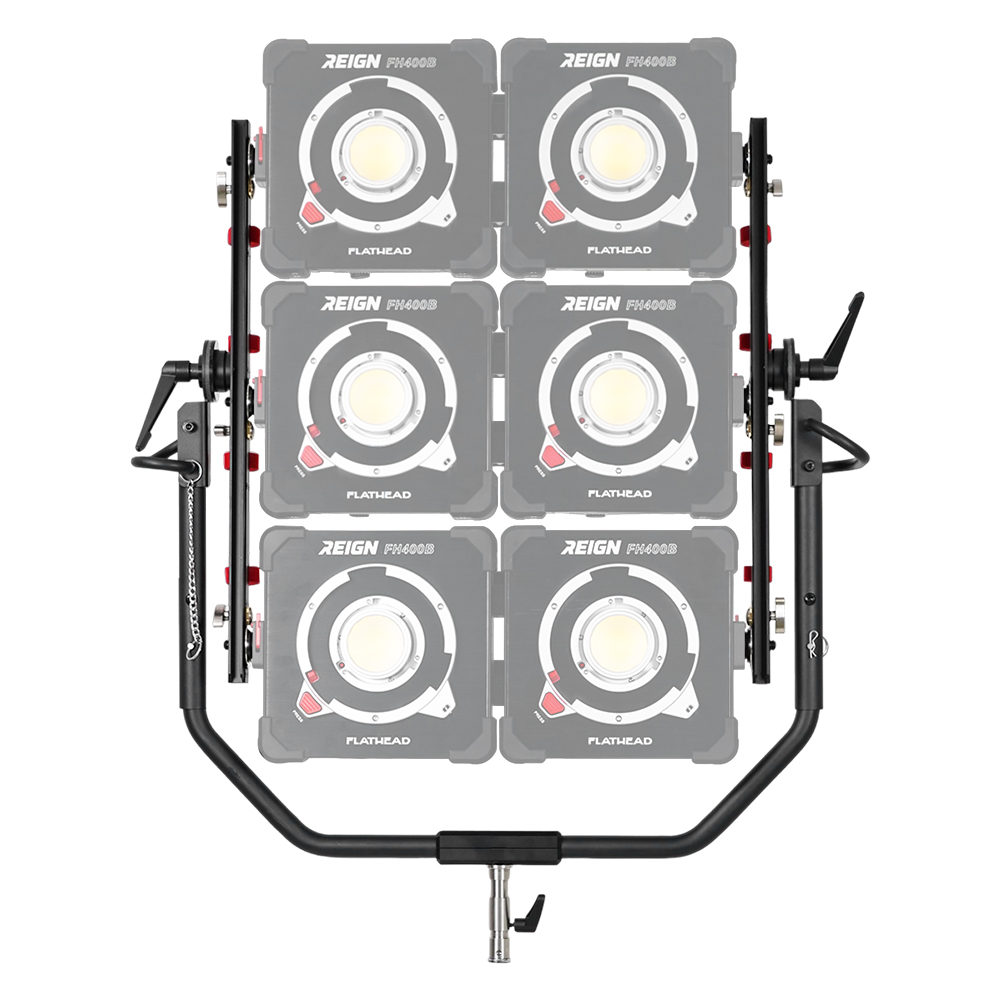

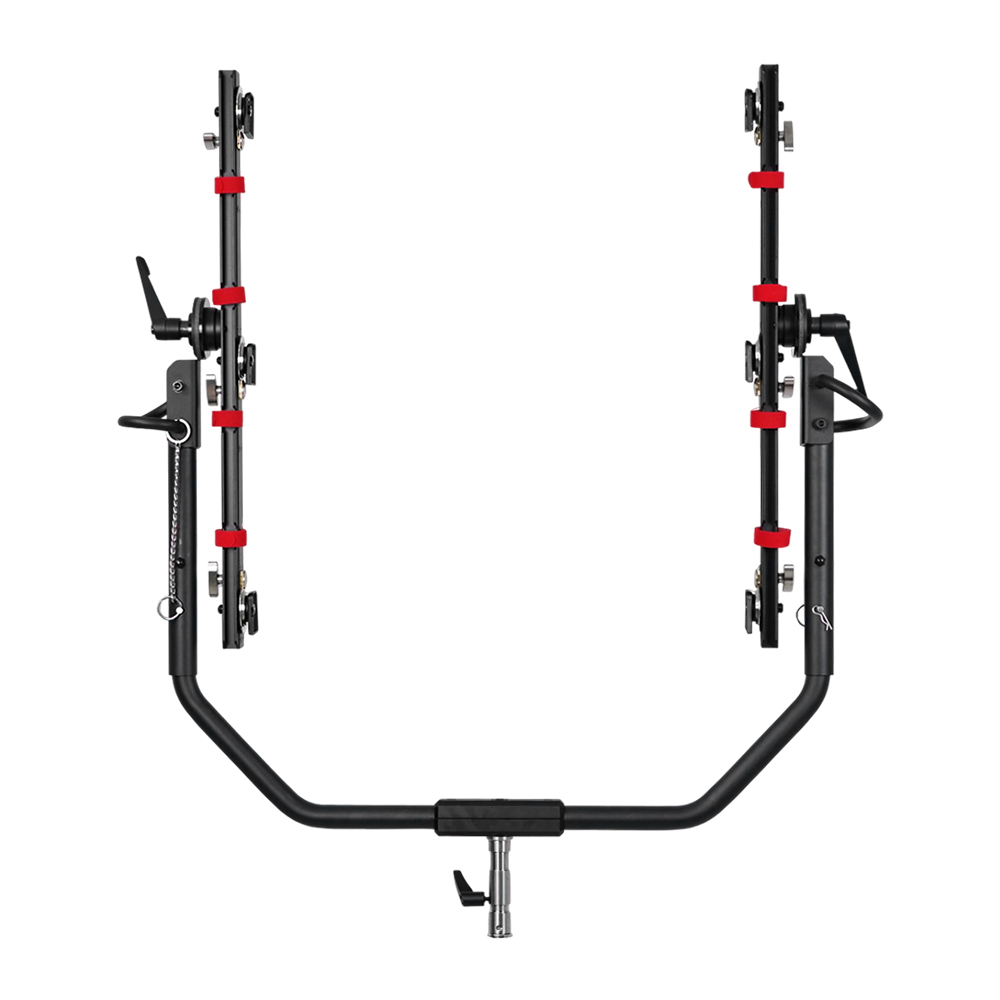

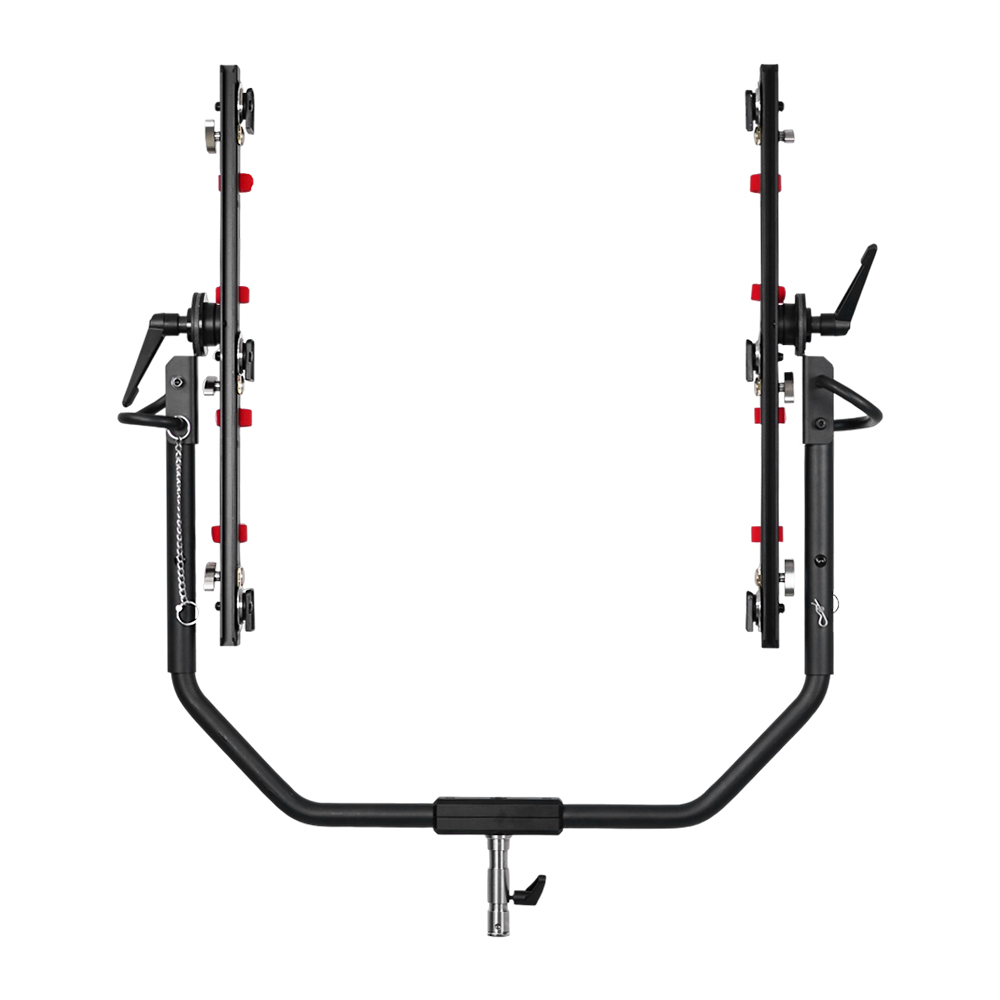

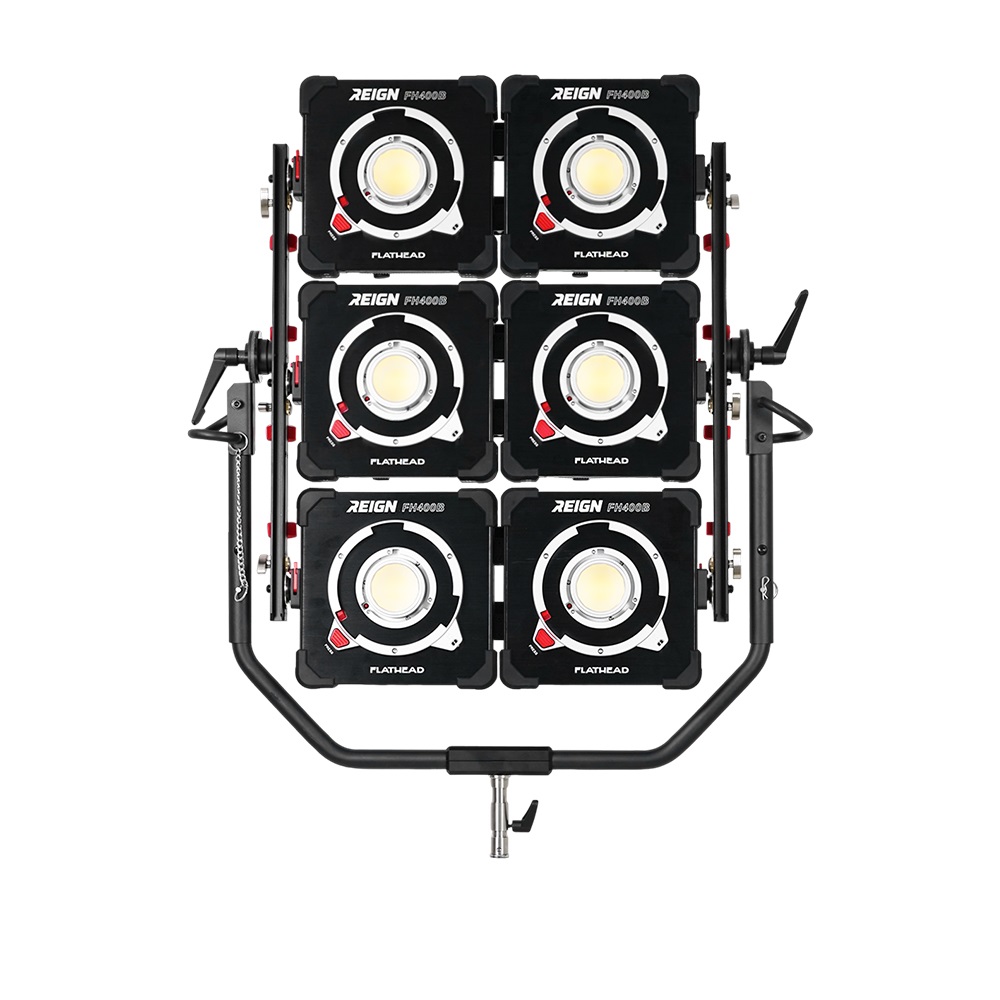

6-Head Multi Yoke
The 6x Multi Yoke Frame takes modular lighting to the next level. Designed to accommodate six FlatHead lights, this frame delivers an impressive 2400W of output in a single, manageable rig. With independent tilt adjustments for each row of lights, you have complete control over light direction and intensity. Perfect for large-scale productions, the 6x Multi Yoke Frame combines power, precision, and portability in one sleek package.
- TLCI:
- 97+
- CRI:
- 97+

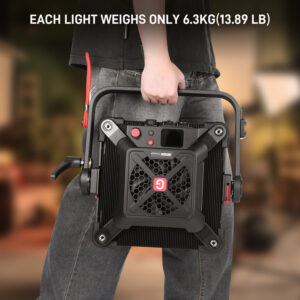

- GVM-FH400C: 6.35 KG
- GVM-FH400B: 6.35 KG
- GVM-F200C: 2.9 KG
- GVM-FH400C/F200C
- 2000K-10000K
- GVM-FH400B
- 2700K-6800K
- GVM-FH400C/FH400B:
- 400W
- GVM-F200C:
- 200W
CORE ADVANTAGE
IP65 Water-Resistant
Reliable performance in diverse environments.
Versatile Control Options

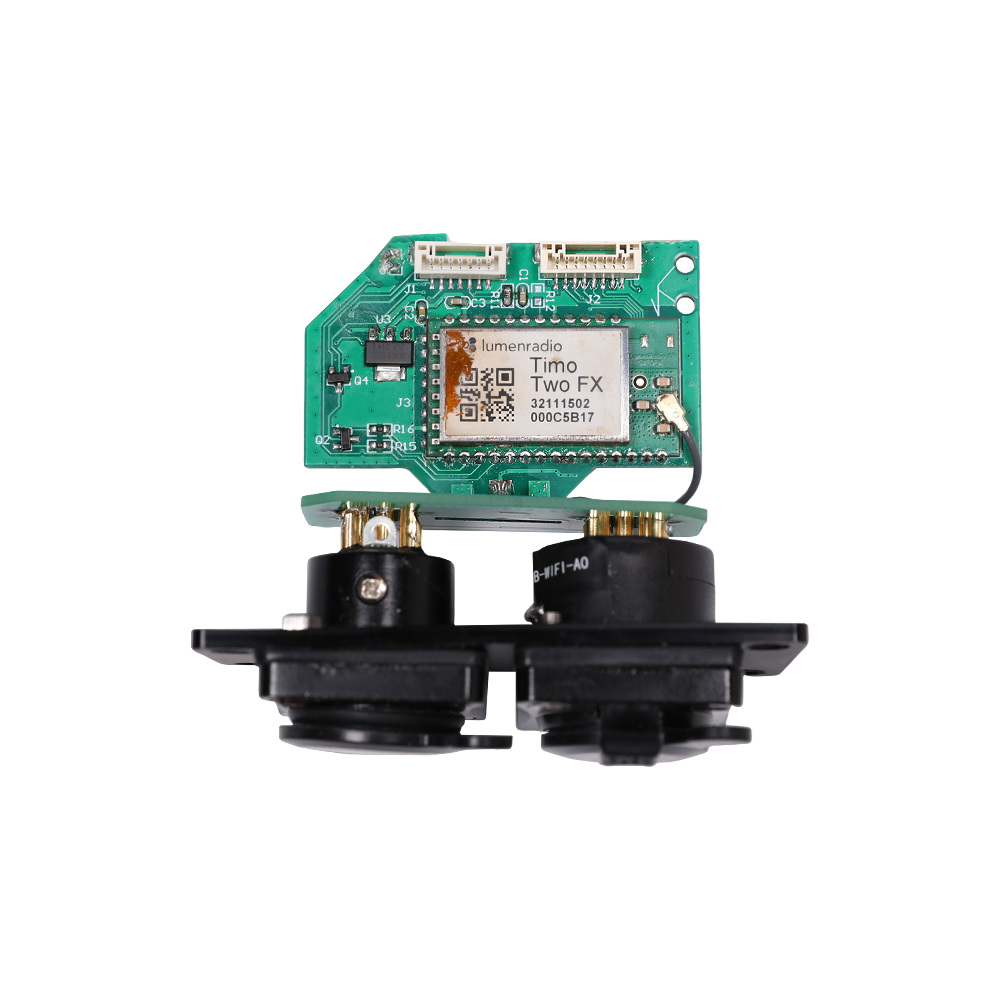

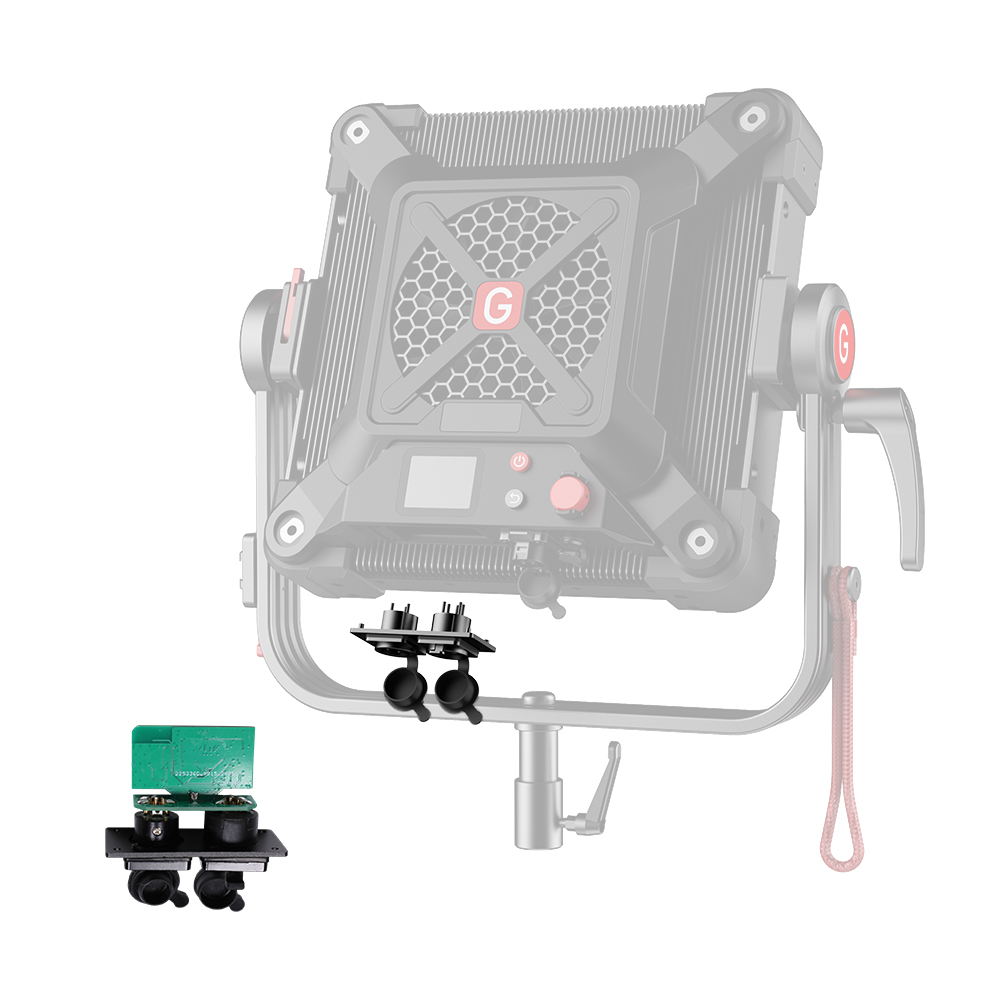

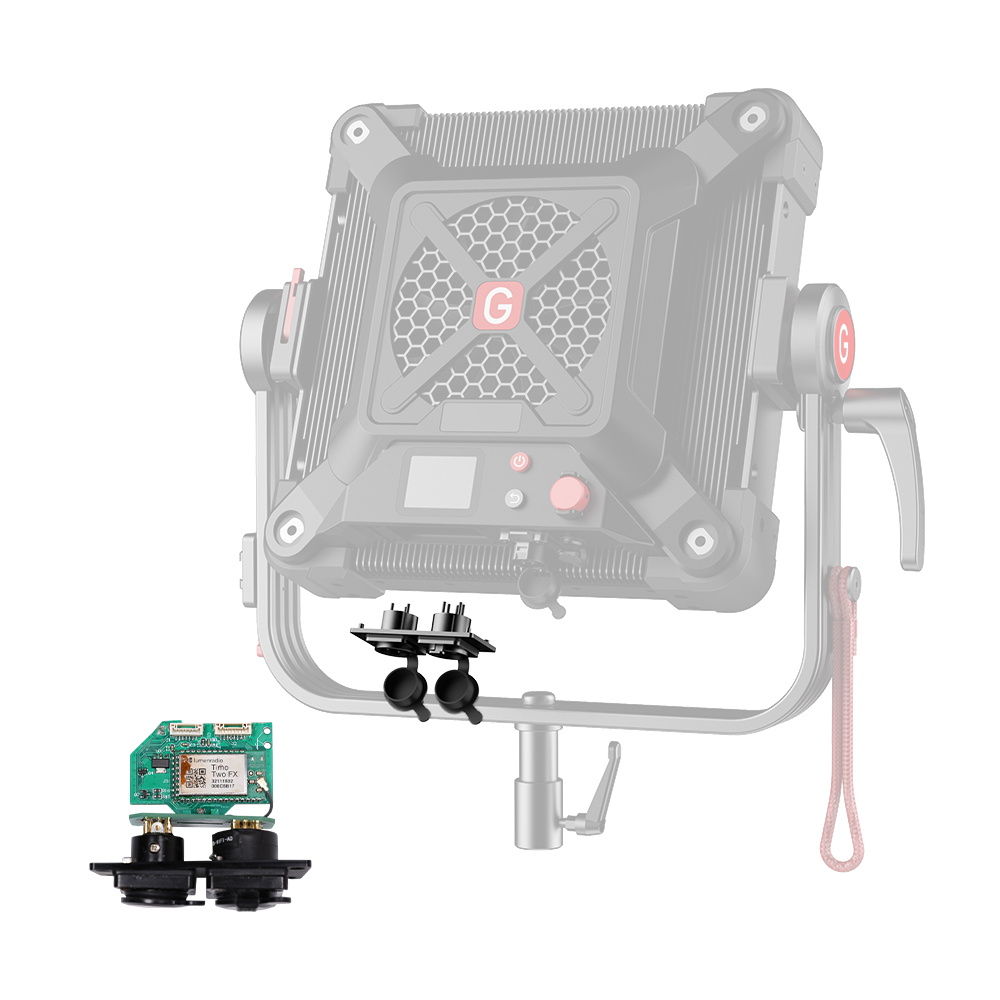

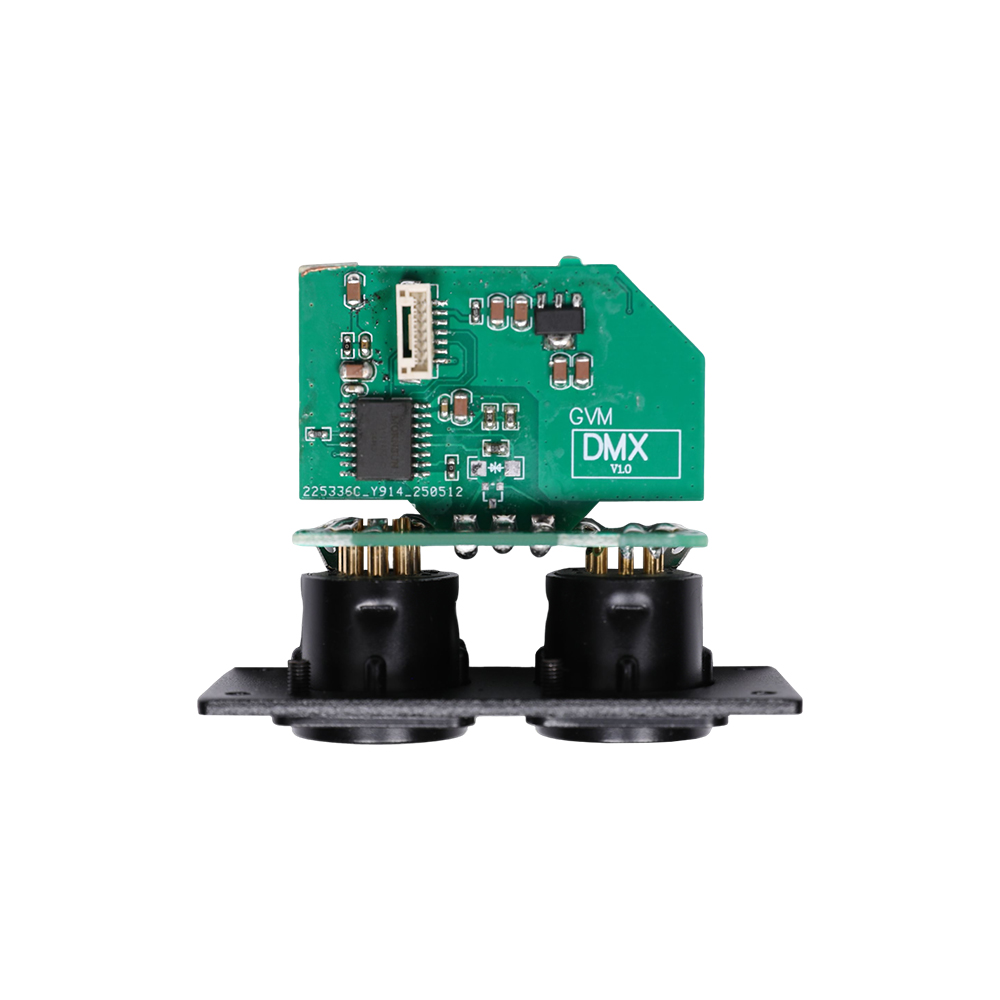

DMX, RDM and optionally ArtNet, sACN & Lumenradio CRMX.
Space-Saving Mounting
Ideal for low ceilings, compact rigs, and portable cases.
Single-Source COB Technology
Delivers consistent, high-quality light output without the diffusion of panel-based systems
IP65 Water-Resistant
Reliable performance in diverse environments.
Versatile Control Options
DMX, RDM and optionally ArtNet, sACN & Lumenradio CRMX.
Space-Saving Mounting
Ideal for low ceilings, compact rigs, and portable cases.
Single-Source COB Technology
Delivers consistent, high-quality light output without the diffusion of panel-based systems
Specification
- GVM-FH400C
- Power: 400W
- Max Output: Open face 21400lux@1m
- Mount: Bowens + G7
- LED Engine: Full-Color - RGBAL
- CCT: 2000-10000K
- Color Accuracy: 97+ CRI, 97 TLCI
- Modes:CCT, HSI, RGB, Effects(Only APP provide), XY, Source Matching
- Dimming: Flicker free 0% to 100% in 0.01% steps
- IP Rating: IP65
- Cooling: Passive+Advanced Active Cooling System, with 4 modes: Intelligent, High Speed, Silent, Passive Cooling
- Control: Built-In controller, Bluetooth, DMX (512A + RDM)
-
Connectors:
1x DC In (46V/9.1A); 2x DMX (In and Out), XLR-5pin; 1x USB type C - AC Voltage: 100 - 240 V~, 50/60Hz
- DC Voltage: 46V/9.1A
- Housing Material: Aluminum+Engineering Plastics
- Dimensions: 425*120.9*447.8(mm) (incl. yoke); 325.38*120.9*303(mm) (excl. yoke)
- Weight: 6.35 KG
- Controller + Ballast: Integrated into the light head
- GVM-FH400B
- Power: 400W
- Max Output: Open face 21700lux@1m
- Mount: Bowens + G7
- LED Engine: Bi-Color
- CCT: 2700-6800K
- Color Accuracy: 97+ CRI, 97 TLCI
- Modes: CCT, Effects(Only APP provide), Source Matching
- Dimming: Flicker free 0% to 100% in 0.01% steps
- IP Rating: IP65
- Cooling: Passive+Advanced Active Cooling System, with 4 modes: Intelligent, High Speed, Silent, Passive Cooling
- Control: Built-In controller, Bluetooth, DMX (512A + RDM)
-
Connectors:
1x DC In (60V/7A); 2x DMX (In and Out), XLR-5pin; 1x USB type C - AC Voltage: 100 - 240 V~, 50/60Hz
- DC Voltage: 60V/7A
- Housing Material: Aluminum+Engineering Plastics
- Dimensions: 425*120.9*447.8(mm) (incl. yoke); 325.38*120.9*303(mm) (excl. yoke)
- Weight: 6.35 KG
- Controller + Ballast: Integrated into the light head
- GVM-F200C
- Power: 200W
- Max Output: Open face 7240lux@1m
- Mount: Bowens
- LED Engine: Full-Color - RGBWY
- CCT: 2000-10000K
- Color Accuracy: 97+ CRI, 97 TLCI
- Modes:CCT, HSI, RGB, Effects(Only APP provide), XY, Source Matching
- Dimming: Flicker free 0% to 100% in 0.01% steps
- IP Rating: /
- Cooling: Passive+Advanced Active Cooling System, with 4 modes: Intelligent, High Speed, Silent, Passive Cooling
- Control: Built-In controller, Bluetooth, DMX (512A + RDM)
-
Connectors:
1x DC In (32V/7A); 1x DMX In, XLR-5pin; 1x USB type C - AC Voltage: 100 - 240 V~, 50/60Hz
- DC Voltage: 32V/7A
- Housing Material: Aluminum+Engineering Plastics
- Dimensions: 267.21*108.6*313.8(mm) (incl. yoke)
- Weight: 2.9 KG
- Controller + Ballast: Integrated into the light head
