Specification
- Power Consumption: 300W
- Mount: Bowens

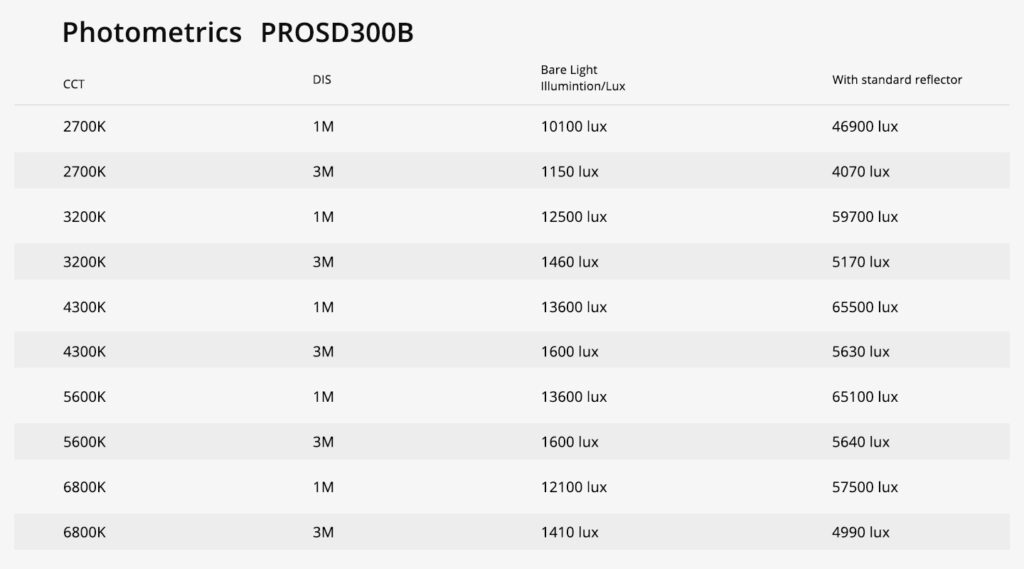

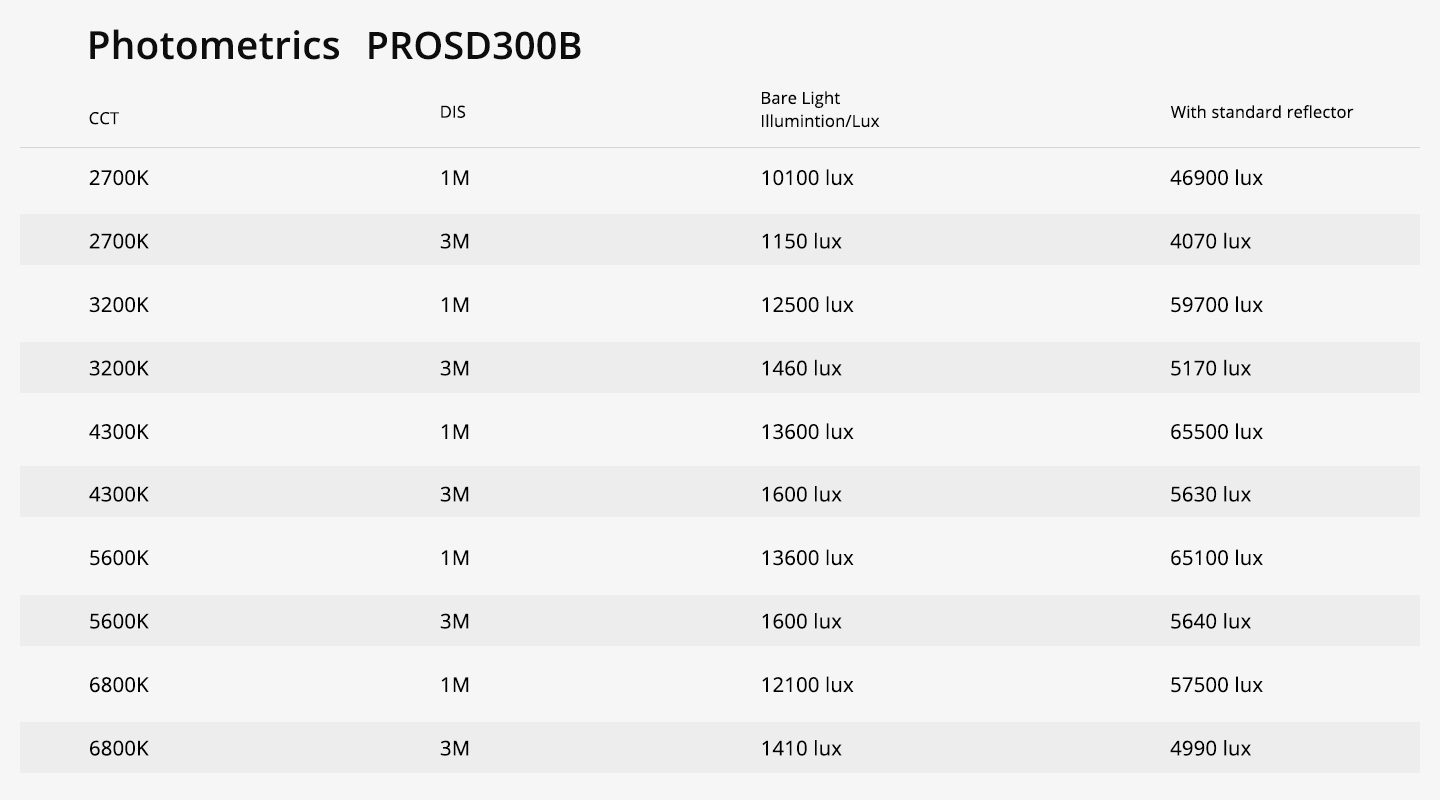

- Max Output: Bare bulb: 13,700 lux at 1M; Standard reflector: 65,700 lux at 1M
- LED Engine: Bicolor
- CCT: 2700-6800K
- Color Accuracy: 97+ CRI, 97 TLCI
- Modes: CCT, Source Matching, Effects
- Dimming: Flicker-free 0%-100% in 0.1% increments.
- IP Rating: /
- Cooling: Passive+Advanced Active Cooling System, with 4 modes: Intelligent, High Speed, Silent, Passive Cooling
- Control: Built-In controller, Bluetooth，RF(Radio Frequency)，DMX IN/OUT，RDM
- Connectors: DC IN，5-Pin DMX IN & OUT
- AC Voltage: 100 - 240 V~, 50/60Hz
- DC Voltage: 60V/5A
- Housing Material: Aluminum+Engineering Plastics
- Dimensions: 292×130×134mm
- Weight: 2.7KG
- Controller + Ballast: Integrated into the light head
Download
FAQ
I own a SD200D and need more power. The specs say this is 51,100 Lux at 3.3' w/ Reflector less than the 200?
According to GVM the GVM Pro SD300B Bi-Color LED Monolight (300W) is brighter but the numbers they list might not be correct.
Can a Snoot be used with this light?
The GVM Pro SD300B Bi-Color LED Monolight (300W) (B&H# GVPROSD300B) may be used with this snoot: Westcott Snoot with Honeycomb Grid (Bowens/Godox Mount) (B&H# WE4724) https://bhpho.to/30ilJs9
Do you have a recommendation for a v-mount battery for this light? Not sure what capacity is required.
The GVM Pro SD300B Bi-Color LED Monolight (300W) draws a lot of power, up to 300 watts. You will need this part: B&H # GVM603BOX (https://bhpho.to/3wnBeTF). Also, I would not use batteries any less than what you see here: B&H # WAVM293SP2C (https://bhpho.to/3Tf6eOa).
What is the actual AC110v power draw, in watts or amps, of the power supply?
This is a 300W draw light. The DC input of the light that comes from the ac adapter is 60 VDC at 5 A.
What is the warranty?
The GVM Pro SD300B Bi-Color LED Monolight (300W) BH #GVPROSD300B has a 1 year limited manufacturer warranty.
Will it work from 40-48v battery? If only 60v - how does V-mount batteries can be connected?
You can use the BH #GVMSDBOX to connect batteries to the GVM Pro SD300B Bi-Color LED Monolight (300W) BH #GVPROSD300B.
Will this work with the Aputure Spotlight Mount Set with 26 Lens (APJ0118A32) ?
Yes, the GVM Pro SD300B Bi-Color LED Monolight (300W) is compatible with the Aputure Spotlight Mount Set with 26° Lens.
