Specification
- Product Model :GVM-PRO-SD500B
- Power Consumption: 500W
- Mount: Bowens

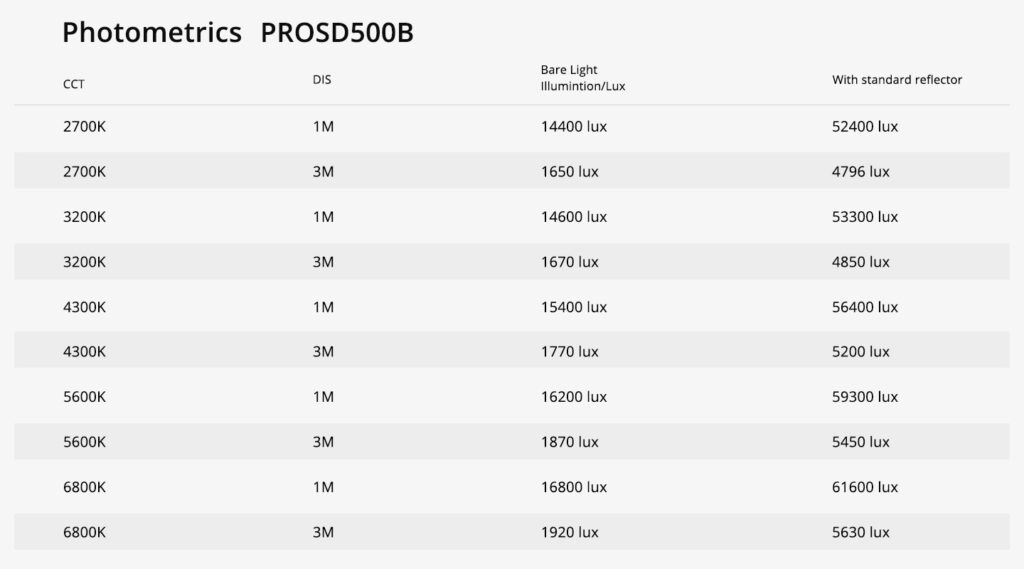

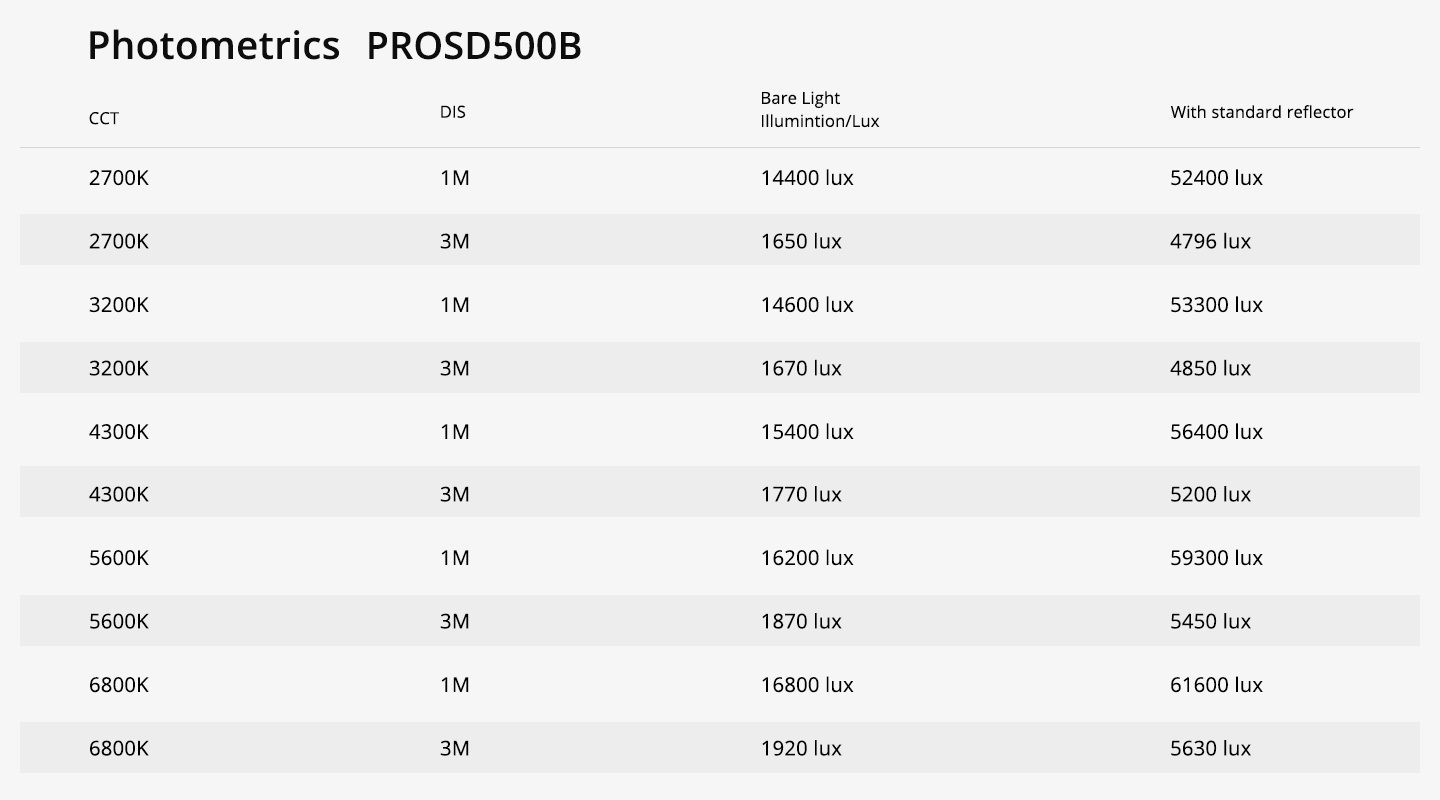

- Max Output: Bare bulb: 16,800 lux at 1M; Standard reflector: 61,600 lux at 1M
- LED Engine: Bicolor
- CCT: 2700-6800K
- Color Accuracy: 97+ CRI, 97 TLCI
- Modes: CCT, Source Matching, Effects
- Dimming: Flicker free 0%-100% in 0.1% increments
- Cooling: Passive+Advanced Active Cooling System, with 4 modes: Intelligent, High Speed, Silent, Passive Cooling
- Control:Control ballast, Bluetooth，RF(Radio Frequency)，DMX IN & OUT，RDM
- Connectors: AC IN/DC OUT;DMX IN & OUT
- AC Voltage: 100 - 240 V~, 50/60Hz
- DC Voltage: 52V/8.2A
- Housing Material: Aluminum+Engineering Plastics
- Dimensions: Fixture：436*150*265(mm) (incl. yoke); Controller: 136*133*335(mm)
- Weight: Fixture：5KG; Controller：2.6KG
- Controller + Ballast: controller and adapter are separate
Download
FAQ
Are both the head and ballast/control box rainproof?
Both the GVM Pro SD500B Bi-Color LED Monolight and control box are not waterproof or rainproof.
What is the max power output when operated on v mount battery?
The GVM Pro SD500B Bi-Color LED Monolight (500W) can run on full power with V-mount batteries. The light uses two. Best is to use V mount batteries that are over 150mah. Two of them will not last much more than an hour as that light uses a lot of power.
One of the reviewers said the Bowens S mount wasn't actually compatible with other brands Bowens S mount accessories. true?
The GVM Pro SD500B Bi-Color LED Monolight (500W) does work with many third party Bowens S mount accessories.
The SD500B Pro is the light fixture water resistant, the video shows them having the light in the rain?
The GVM Pro SD500B Bi-Color LED Monolight (500W) is weather resistant, not waterproof.
What kind of power cable do I need for this when using it in Europe with EU plug?
The input power of the GVM Pro SD500B Bi-Color LED Monolight (500W) is 100 to 240 VAC, 50 / 60 Hz so all you would need is an adapter like the Watson 3-Prong USA to 2-Prong Europe Power Adapter Plug.
What are the dimming increments? 1%? 0.01%? 0.001%?
The GVM Pro SD500B Bi-Color LED Monolight (500W) can be accurately adjusted in increments of 0.1%.
Is there any way to remotely turn it on without having to touch the button on the ballast? Looking to use a few of these in an overhead grid.
The GVM Pro SD500B Bi-Color LED Monolight (500W) can work by remote in a few ways. One way is with the following wireless remote: B&H # GVMYK22 (https://bhpho.to/3z5cQYo). Next, the light supports DMX; therefore, it can be controlled by a control board and DMX cables. Another way is with Bluetooth (via an app).
