GVM SD500B AIO

Overview
Specs & Downloads
Buy Now

Specification

  • Power Consumption: 500W
  • Mount: Bowens
  • Max Output: Bare bulb 23800 lux@1m, 2680 lux@3m; Standard reflector 227040 lux@1m, 19760 lux@3m
  • LED Engine: Bicolor
  • CCT: 2700-6800K
  • Color Accuracy: 97+ CRI, 97 TLCI
  • Modes: CCT, Effects (Only accessible through the mobile app), Source Matching (Only accessible through the mobile app)
  • Dimming: Flicker-free dimming 0%- 100% in 0.1% increments.
  • IP Rating: /
  • Cooling: Passive+Advanced Active Cooling System, with 4 modes: Intelligent, High Speed, Silent, Passive Cooling
  • Control: Built-In controller, Bluetooth
  • Connectors: AC In (100-240V)
  • AC Voltage: 100-240V, 50/60Hz
  • Housing Material: Aluminum+Engineering Plastics
  • Dimensions: 324*178*165(mm) (incl. yoke)
  • Weight: 6.65 KG (incl. yoke)
  • Controller + Ballast: Integrated into the light head

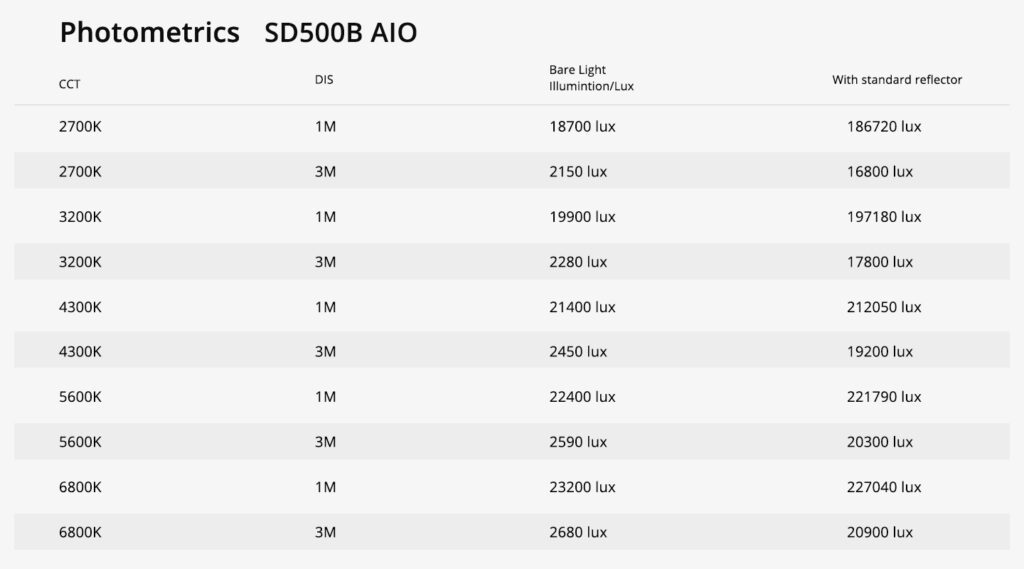

AIO500B流明 1

Download

GVM SD500B AIO User Manual

FAQ

The GVM 1200B-AIO Bi-Color LED Monolight features an integrated design with the light and controller combined while the R1200Bi comes with a separate controller. The AIO uses the Bowens mount, and the R1200B uses a standard G-mount. The 1200B-AIO is not waterproof. The R1200B is splashproof.

AIO Series: The Most Integrated COB Lights Ever Built.
No external controllers, no bulky ballasts—just a single head with everything pros need. Plug. Play. Create.
Why AIO? All-In-One Means All You Need.
● Built-In Intelligence:
No external ballast or controller—everything lives in the head. Plug in, power up, and shoot.
● Compact & Portable:
All-In-One also means compact and easy to work with. Grab it with its strong internal handle and bring it where it’s needed.
● Instant Setup:
Unbox to ready under 60 seconds. No mounting controllers or untangling cables.
● Pro Performance:
Bicolor (2700K–6500K), 95+ CRI/TLCI, silent operation, and advanced cooling.
● Future-Ready:
Compatible with industry-standard modifiers (Bowens mount) and wireless Bluetooth control.
AIO Series: The Most Integrated COB Lights Ever Built.
No external controllers, no bulky ballasts—just a single head with everything pros need. Plug. Play. Create.
Why AIO? All-In-One Means All You Need.
● Built-In Intelligence:
No external ballast or controller—everything lives in the head. Plug in, power up, and shoot.
● Compact & Portable:
All-In-One also means compact and easy to work with. Grab it with its strong internal handle and bring it where it’s needed.
● Instant Setup:
Unbox to ready under 60 seconds. No mounting controllers or untangling cables.
● Pro Performance:
Bicolor (2700K–6500K), 95+ CRI/TLCI, silent operation, and advanced cooling.
● Future-Ready:
Compatible with industry-standard modifiers (Bowens mount) and wireless Bluetooth control.
