300W LED Studio light film grade double head spotlight
The new double headed movie is a professional upgrade of the str-300vm
It is a newly upgraded RGB movie video lamp in 2022
Update the LCD screen currently displaying light parameters
Update more comprehensive control mode, channel value, scene number and simulation scene mode
One end has a high-quality two-color temperature cob lamp bead with a color temperature of 2700-7500k
The other end is RGB light beads, with 0-36000 colors adjustable
Both ends have a power of 300W
Equivalent to the price of 1 lamp, I bought 2 lamps
It also has lighting scene special effects, and two heads emit light at the same time, which can meet various shooting needs
High display CRI 97+
It can effectively help restore and enrich the color of the subject
Provide you with natural and vivid shooting effects
It can also provide excellent lighting effect for films, film and television dramas, film and television advertisements, etc.
Industrial film and television full color panel lamp
The new GVM ST series LED panel is a powerful light source. It adopts full RGB + WY five-color light source. More colors can output a wider color gamut, so as to provide tens of millions of rich and bright colors.
High color rendering index CRI 97 + & TLCI 97+This can achieve accurate color rendering on the camera and restore the most realistic object color.In order to obtain professional effects, but also provide you with natural and vivid shooting effects.It can ensure that the color layout in the matrix system and rgbwy in the beam area are mixed evenly without color separation
Thousand step dimming accuracy
The adjustment range of gvm-st300r brightness is 0.1% – 100.0%, and the user can adjust the brightness accurately to 0.1%;Finer.dimming accuracy can provide smoother dimming process and more accurate color; With the new algorithm model of GVM, the light intensity can be adjusted step by step, and the dimming process can be completed quickly and smoothly.
GVM-ST300R has four dimming curves (linear/logarithmic/exponential/S curves) to be selected to meet the technical requirements of studio devices, such as TV news and entertainment production sets. High standard and professional light control technology is also the best choice for variety shooting and movie making
Constant power 300W
The conventional Bi-color temperature RGB board lamp adjusts the color temperature and color light through a variety of different lamp beads, which leads to different power of different colors at different color temperatures. Often the middle color temperature power is high, and the power is low at low color temperature and high color temperature. The brightness of lights with different color temperatures and different colors is different.
St300r’s new algorithm will automatically calculate the appropriate power while adjusting the color temperature and color of a variety of lamp beads, so that the power of different color temperatures and different colors are consistent. While adjusting the color temperature and RGB, the brightness remains unchanged. Under the condition of maximum brightness, the constant power of 300W can be kept unchanged
White light color temperature adjustment mode, adjustable light intensity and color temperature. CCT (Related Color Temperature) mode allows accurate color temperature adjustment from a comfortable warm color of 2700K to a dark sky blue of 7500K to match any lighting conditions, such as warm shades of a terrible sunset, cool shades of bright sunlight in summer, or blue moonlight in a clear, dark sky. The green/magenta correction function in CCT mode allows fine-tuning matching with other HMI, LED or fluorescent lamps or accurate color balancing for different camera sensors.
HSI color mode allows collaboration by intuitively selecting a specific color and fine-tuning the brightness and intensity of the color. Adjustable hue, saturation, light intensity, (HSI = hue, saturation, light intensity), to achieve 36 million color adjustable.
RGB color mode, adjustable red light, green light, blue light, 1.6 X 1010 color adjustable
GEL Color Paper Mode
Two types of color paper, ROSCO and LEE, are available. There are 30 numbered color paper libraries for each color paper type, each of which is the standard for movies and television. You can quickly choose a professional light color.
Light Matching Mode
This mode offers 12 different light source types and saves a lot of adjustment time when you need a particular light source
White light effect mode&Color effect mode
This mode provides eight white light effects: lightning, CCT cycle, candle, bad light bulb, TV, paparazzi, explosion, breathing light
This mode provides 4 types of color effect: Di bar, party, police car, color cycle
Strong structure and practical design
The panel has a solid, all-aluminum structure that can withstand heavy daily use. The sturdy housing is functionally designed with built-in rear handles and bottom legs for easy operation, installation and storage of the panel.
Strong structure and practical design
Perforated aluminium housing design and active cooling system ensure efficient heat dissipation to maintain the stability of the LED panel and extend its service life
True soft light source
GVM ST300R provides a smooth and even beam field by combining the latest wide beam, true-tone SMD LED and diffuser plates. The large surface area of the panel produces a bright, surround output with clean, soft shadows and acts as a beautifying light on the body
Using the built-in industry standard DMX-512 interface, the gvm-st300r can be integrated into more complex studio installations that require standardized remote control methods, such as news sets, talk shows or entertainment production. The unit is equipped with two xlr-3p DMX ports (input / output loop) that allow the panel to be connected to the DMX lighting console.
Gvm-st300r provides DMX control mode with 8bit precision and 16bit precision.
Intuitive user interface
GVM-ST300R uses an intuitive panel control interface to operate the lights quickly and easily. The digital display displays all the useful information for the user to adjust and customize the desired values.
Three large selection knobs can be easily handled (even with gloves) to fine-tune required parameters.
Active cooling system
LED lamps are more efficient than traditional light sources. However, LED light sources generate a lot of heat in some cases. Generally speaking, the colder the environment, the higher the light output of the LED. Higher temperatures usually reduce light output. In warmer environments and higher currents, the temperature of the semiconductor element increases. The light output of an LED varies with its temperature at a constant current. Good and efficient thermal management helps to reduce heat accumulation inside and around the LED, which significantly prolongs its lifetime, increases its light output and minimizes the temperature impact on the shooting site.
ST series uses multiple heat sink metal sheets plus heat conducting copper tube design, which can greatly increase the area of air contact, maximize heat conduction outward, and improve the efficiency of heat transfer.
In addition, when the ambient temperature or the total heat generated by the LED is very high, we can increase the total heat from the device by forcing air to flow through it. Dual fan system allows air convection to maximize air circulation. Adding a fan also has the added advantage of removing any concentration of still hot air (hot spots) so that the entire LED system can remain at a reasonable temperature for a long time.
With the carefully designed mute system, the GVM-ST series boldly introduces a new design, with a built-in cooling super-mute fan. The advantage of the dual fan is that it can effectively cool down without requiring a high speed. With 100% light intensity, the noise will not exceed 40dB even if the two fans rotate at the same time (when the ambient noise is less than or equal to 22dB). Almost no sound can be heard, and there is no need to adjust the lighting position to accommodate the noise.
Ultra quiet design
Adopting the well-designed mute system, gvm-ST series boldly introduces a new design, with built-in cooling ultra mute fan. The advantage of dual fan is that it can effectively cool down without high speed. When the light brightness is 100%, even if the two fans rotate at the same time, the noise will not exceed 40dB (when the ambient noise is ≤ 22dB), and the sound can hardly be heard. There is no need to adjust the lighting position to adapt to the noise.

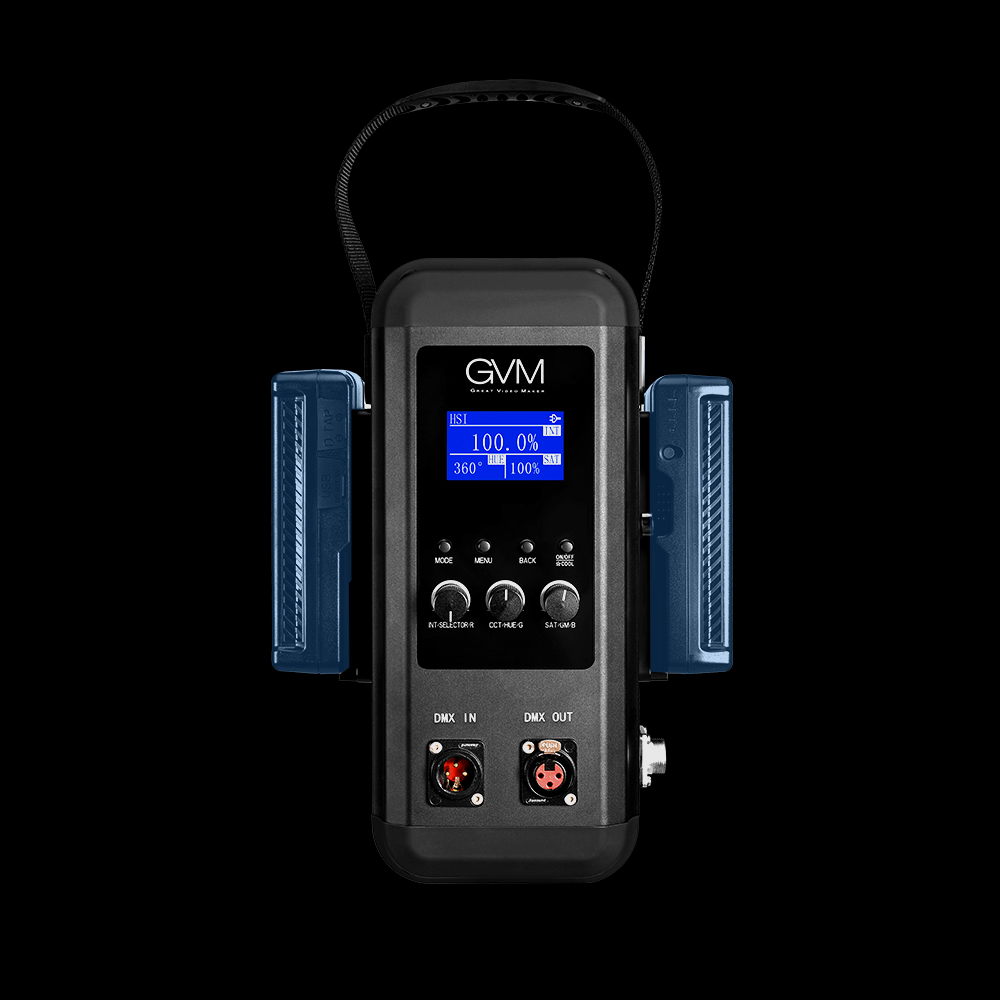

Multiple Power Options
GVM-ST300R can be directly powered from AC 100-240V power outlet.
But it also has battery panels that allow you to use dual V-Mount batteries
Installation of V-port batteries makes it easy to take pictures outdoors, which makes them efficient and portable outdoors.
App Bluetooth remote control
With Bluetooth 5.0 Mesh networking system, you can search for “GVM_LED” in the App Store to download mobile App (iOS and Android) remote control lights;
Through Bluetooth Mesh networking system, users can control multiple ST300R devices at the same time. The intuitive control panel on App makes the lighting scene layout easier and faster, which saves a lot of time and effort.
Users can rename connected light devices, group control, and so on, to make the devices work better with different scenarios.
Various modes, full color adjustable
RGB mode: Red light, green light and blue light can be adjusted respectively to achieve 1.6 X 1010 color adjustable.
GEL Color Paper Mode: Two types of color paper, ROSCO and LEE, are available. There are 30 numbered color paper libraries for each color paper type, each of which is the standard for movies and television. You can quickly choose a professional light color.
White light effect mode: This mode provides eight white light effects: lightning, CCT cycle, candle, bad light bulb, TV, paparazzi, explosion, breathing light.
Color effect mode: This mode provides four types of color effect: Di-bar, party, police car, color cycle.
Various modes, full color adjustable
CCT mode: White light color temperature adjustment mode, adjustable light intensity and color temperature. CCT (Related Color Temperature) mode allows accurate color temperature adjustment from a comfortable warm color of 2700K to a dark sky blue of 7500K to match any lighting conditions, such as warm shades of a terrible sunset, cool shades of bright sunlight in summer, or blue moonlight in a clear, dark sky. The green/magenta correction function in CCT mode allows fine-tuning matching with other HMI, LED orfluorescent lamps or accurate color balancing for different camera sensors.
HSI mode: HSI color mode allows collaboration by intuitively selecting a specific color and fine-tuning the brightness and intensity of the color. Adjustable hue, saturation, light intensity, (HSI = hue, saturation, light intensity), to achieve 36 million color adjustable.
CCT control mode:
Includes four quick adjusting functions: color temperature, dimming curve, red and green supplementary light, and light intensity, which are intuitive and simple to operate.
RGB Control Mode
RGB mode includes color gamut pickup and adjusting bar pickup.
Color gamut selection: Select RGB value by touching the color gamut with your finger to make the light color setting faster and more intuitive;
Adjustment bar color selection: can accurately adjust the changes of R, G, B in the range of 0-255, so that the change of light is more accurate;
HSI Control Mode
HSI mode includes color pick-up by color palette and color pick-up by camera;
Colour pick-up: Fast and smooth adjustment of HUE (0-360 degrees) and SAT (0-100%) by finger touch to make the light have more colour;
Camera pick-up: Get HUE and SAT values corresponding to the environment through the camera anchor point to control the color change of the light, so that your scene light effect is closer to the environment;
GEL Control Mode
Contains 30 LEE and 30 ROSCO types of commonly used color paper to quickly adapt to different shooting environments.
