GVM YU600R Led Video Lights Panel Rgb And Bi-Color Studio Light


Product Overview


A versatile and easily controllable light source for streaming, outdoor, and studio shoots, the YU600C Bi-Color Studio Softlight LED Panel from GVM offers photographers and video professionals effective light control by utilizing high-CRI LEDs in a compact soft panel designed to deliver high performance at a wide beam angle of 180°. This light features stepless RGB color control from 0 to 360°, consistent brightness across its 2000-10000K temperature range, and seven customized lighting modes including HSI, source matching, CCT, and plenty of effects.
The light can output 49000 lux at 1.64 foot and 16000 lux at 3.28 foot; while running on universal 100 to 240 volt AC power. In addition to rear panel controls and standard DMX compatibility, a downloadable app allows you to control the fixture directly from your iOS/Android smartphone via Bluetooth.

Full color panel lamp for industrial movies and TV

The new GVM YU LED Studio light panel is a powerful light source, using the full RGB+WY five color light source, more colors can output a wider gamut, providing tens of millions of rich and vibrant colors.
High Color Rendering Index CRI 97+ & TLCI 97+
This enables accurate color rendering on the camera and the most realistic restoration of object color.
To achieve professional results, but also to provide you with natural and vivid shooting effects.
It ensures that the color layout in the matrix system and RGBWY in the beam area are mixed evenly without color separation


Dimming accuracy of 1000 levels

The adjustment range of GVM-PRO-YU600C brightness is 0.1%-100.0%, and the user can adjust brightness accurately to 0.1%. A finer dimming precision that provides a smoother dimming process and more accurate colors; With the new algorithm model of GVM, the light intensity can be adjusted step by step, and the dimming process can be completed quickly and smoothly.

Dimming curve

GVM-PRO-YU600C has four dimming curves (linear/logarithmic/exponential/S curves) to be selected to meet the technical requirements of studio devices, such as TV news and entertainment production sets. High standard and professional light control technology is also the best choice for variety shooting and movie making


Constant power 600W

Regular Bi-color temperature RGB board lamps adjust the color temperature and color light through a variety of different beads, which results in different power for different color temperatures and colors. Often the middle color temperature has a high power, while the power is low at low and high color temperatures. Makes the light intensity different for different color temperatures and colors. YU600C’s new algorithm automatically calculates the appropriate power for different color temperatures and colors while adjusting the color temperature and color of various light beads. Keep the brightness constant while adjusting the color temperature and RGB. At maximum brightness, a constant power of 600W can be maintained.

CCT mode

White light color temperature adjustment mode, adjustable light intensity and color temperature. CCT (Related Color Temperature) mode allows accurate color temperature adjustment from a comfortable warm color of 2000K to a dark sky blue of 10000K to match any lighting conditions, such as warm shades of a terrible sunset, cool shades of bright sunlight in summer, or blue moonlight in a clear, dark sky. The green/magenta correction function in CCT mode allows fine-tuning matching with other HMI, LED or fluorescent lamps or accurate color balancing for different camera sensors.


HSI mode

 HSI color mode allows collaboration by intuitively selecting a specific color and fine-tuning the brightness and intensity of the color. Adjustable hue, saturation, light intensity, (HSI = hue, saturation, light intensity), to achieve 36 million color adjustable.

RGB mode

RGB color mode, adjustable red light, green light, blue light, 1.6 X 1010 color adjustable


GEL Color Paper Mode

Two types of color paper, ROSCO and LEE, are available. There are 30 numbered color paper libraries for each color paper type, each of which is the standard for movies and television. You can quickly choose a professional light color.

Light Matching Mode

This mode offers 12 different light source types and saves a lot of adjustment time when you need a particular light source


White light effect mode&Color effect mode

This mode provides eight white light effects: lightning, CCT cycle, candle, bad light bulb, TV, paparazzi, explosion, breathing light
This mode provides 4 types of color effect: Di bar, party, police car, color cycle

Strong structure and practical design

The panel has a solid, all-aluminum structure that can withstand heavy daily use. The sturdy housing is functionally designed with built-in rear handles and bottom legs for easy operation, installation and storage of the panel
Perforated aluminium housing design and active cooling system ensure efficient heat dissipation to maintain the stability of the LED panel and extend its service life


True soft light source

GVM YU600C provides a smooth and even beam field by combining the latest wide beam, true-tone SMD LED and diffuser plates. The large surface area of the panel produces a bright, surround output with clean, soft shadows and acts as a beautifying light on the body


Using the built-in industry standard DMX-512 interface, the GVM-YU300R can be integrated into more complex studio installations that require a standardized remote control method, such as news sets, talk shows or entertainment productions. The unit is equipped with two XLR-3P DMX ports (input/output – loop-through), allowing the panel to be connected to a DMX lighting console.
GVM-PRO-YU600C provides DMX control mode with 8bit precision and 16bit precision.

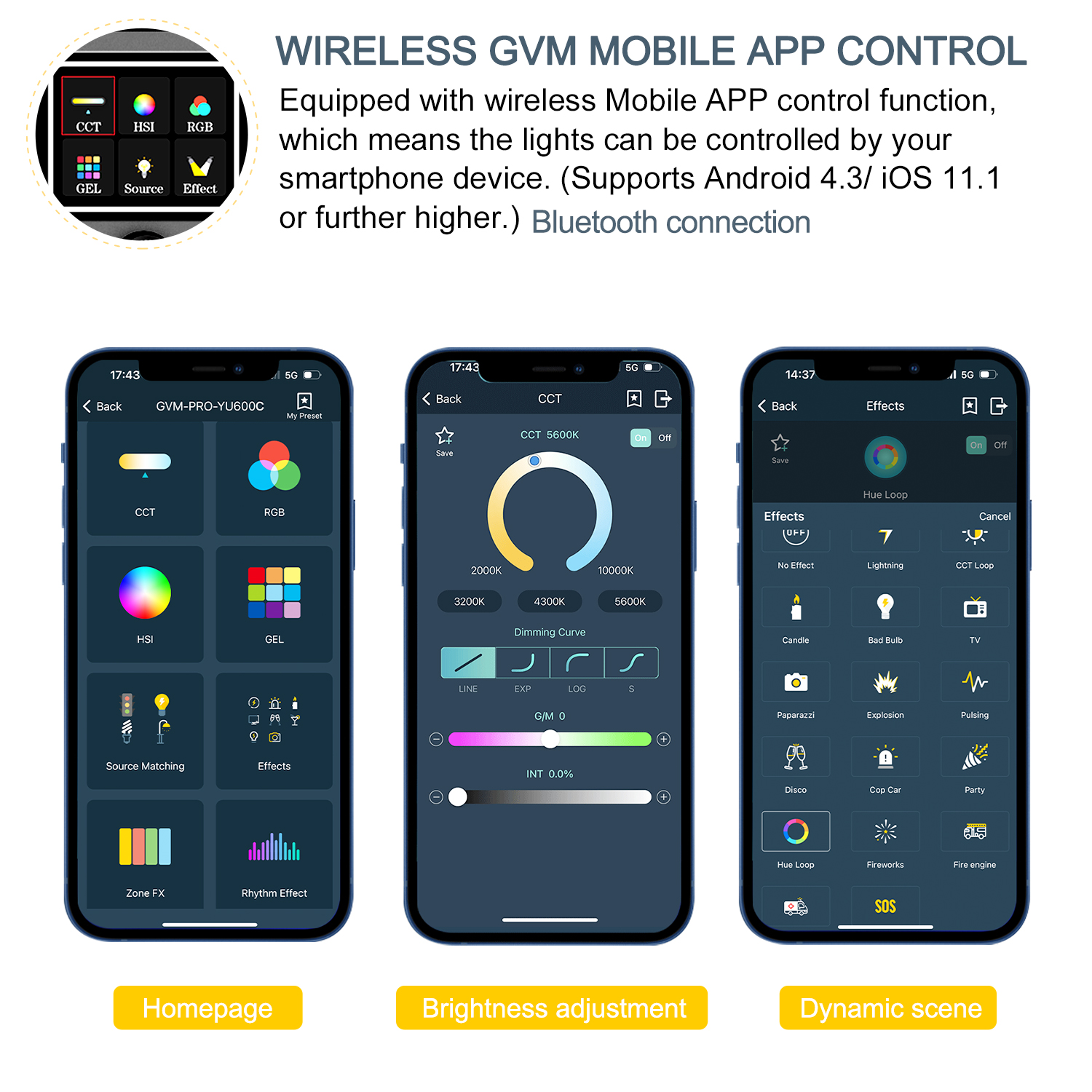

App Bluetooth remote control

Equipped with Bluetooth 5.0 mesh networking system, you can search “gvm_led” in the app store and download mobile app (IOS and Android) to remotely control the light;
Through the Bluetooth mesh networking system, users can control multiple yu600C devices at the same time. The intuitive control panel on the app makes the lighting scene layout simpler and faster, which can save a lot of time and energy;
Users can rename and group the connected lighting devices, so that the devices can better match different use scenarios.

Intuitive user interface

Gvm-YU600C uses intuitive panel control interface to operate lamps easily and quickly. The digital display displays all useful information for the user to adjust and customize the required values.
The three large selection knobs can be easily handled (even with gloves) to fine tune the required parameters.

Transport box

Gvm-YU600C panel and all its main components can be kept in the optional aluminum alloy box. The enclosed foam liner can effectively protect the lamp body and accessories, facilitating transportation and safe storage
