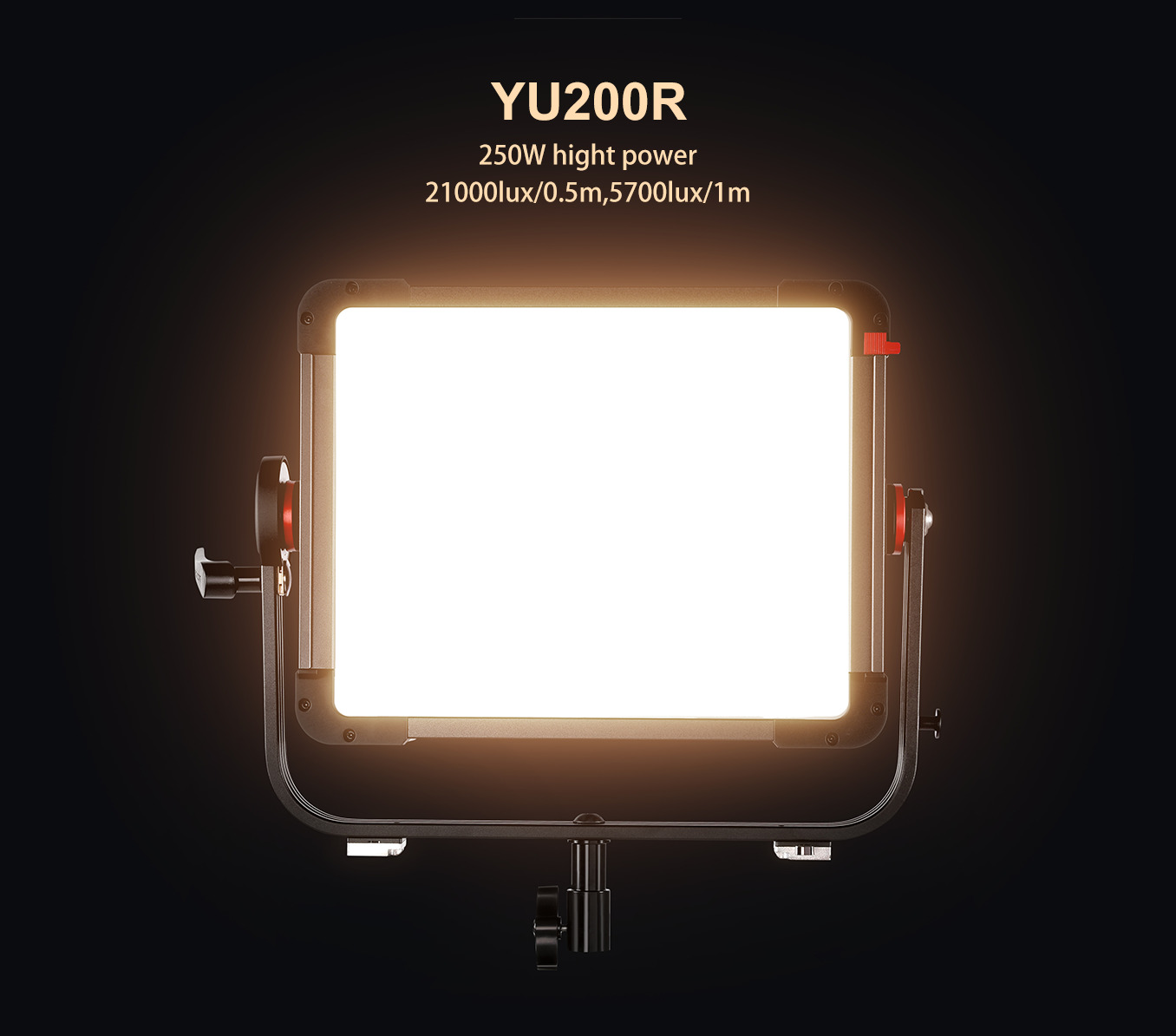

YU200

Professional Cinematic RGB Soft Light Panel

New RGB cinematic soft light for studio
YU series has not only made new upgrades in brightness, color gamut, functions, etc.
At the same time, new breakthroughs have also been made in appearance, material, U-shaped design, and physical external light.
I believe it will bring you more surprises!
Constant power
250w
Outstanding color
CRI 97+
Color Temperature
2700K~7500K
DMX an interface
8bit/16bit
Scene lights
12 Lighting Modes
Smart connectivity
GVM Control APP
Save time and effort
Joint Control



Bluetooth 5.0 mesh

IOS and Android

Smart and intuitive

Easy to get started

APP Intelligent Control System

15
YU200R场景图-2

Aluminum Alloy Material



GVM YU300R is made of aluminum alloy material,
coupled with excellent heat dissipation design,
durable, can work for a long time

Master/Slave Mode



The light panels could set one light as the master mode
and other GVM lights as Slave mode,
which you could easily control all lights with the master one.

20

Full color panel lamp for industrial movies and TV

The new GVM YU series LED panel is a powerful light source, using the full RGB+WY five color light source, more colors can output a wider gamut, providing tens of millions of rich and vibrant colors.
High Color Rendering Index CRI 97+ & TLCI 97+
This enables accurate color rendering on the camera and the most realistic restoration of object color.
To achieve professional results, but also to provide you with natural and vivid shooting effects.
It ensures that the color layout in the matrix system and RGBWY in the beam area are mixed evenly without color separation

1

Dimming accuracy of 1000 levels

The adjustment range of GVM-YU200R brightness is 0.1%-100.0%, and the user can adjust brightness accurately to 0.1%. A finer dimming precision that provides a smoother dimming process and more accurate colors; With the new algorithm model of GVM, the light intensity can be adjusted step by step, and the dimming process can be completed quickly and smoothly.

Dimming curve

GVM-YU200R has four dimming curves (linear/logarithmic/exponential/S curves) to be selected to meet the technical requirements of studio devices, such as TV news and entertainment production sets. High standard and professional light control technology is also the best choice for variety shooting and movie making

3

Constant power 250W

Regular Bi-clor & RGB board lamps adjust the color temperature and color light through a variety of different beads, which results in different power for different color temperatures and colors. Often the middle color temperature has a high power, while the power is low at low and high color temperatures. Makes the light intensity different for different color temperatures and colors. YU200R’s new algorithm automatically calculates the appropriate power for different color temperatures and colors while adjusting the color temperature and color of various light beads. Keep the brightness constant while adjusting the color temperature and RGB. At maximum brightness, a constant power of 200W can be maintained.

CCT mode

White light color temperature adjustment mode, adjustable light intensity and color temperature. CCT (Related Color Temperature) mode allows accurate color temperature adjustment from a comfortable warm color of 2700K to a dark sky blue of 7500K to match any lighting conditions, such as warm shades of a terrible sunset, cool shades of bright sunlight in summer, or blue moonlight in a clear, dark sky. The green/magenta correction function in CCT mode allows fine-tuning matching with other HMI, LED or fluorescent lamps or accurate color balancing for different camera sensors.

6

HSI mode

 HSI color mode allows collaboration by intuitively selecting a specific color and fine-tuning the brightness and intensity of the color. Adjustable hue, saturation, light intensity, (HSI = hue, saturation, light intensity), to achieve 36 million color adjustable.

RGB mode

RGB color mode, adjustable red light, green light, blue light, 1.6 X 1010 color adjustable

8

GEL Color Paper Mode

Two types of color paper, ROSCO and LEE, are available. There are 30 numbered color paper libraries for each color paper type, each of which is the standard for movies and television. You can quickly choose a professional light color.

Light Matching Mode

This mode offers 12 different light source types and saves a lot of adjustment time when you need a particular light source

10
11

White light effect mode&Color effect mode

This mode provides eight white light effects: lightning, CCT cycle, candle, bad light bulb, TV, paparazzi, explosion, breathing light
This mode provides 4 types of color effect: Di bar, party, police car, color cycle

Strong structure and practical design

The panel has a solid, all-aluminum structure that can withstand heavy daily use. The sturdy housing is functionally designed with built-in rear handles and bottom legs for easy operation, installation and storage of the panel
Perforated aluminium housing design and active cooling system ensure efficient heat dissipation to maintain the stability of the LED panel and extend its service life

12

True soft light source

GVM YU200R provides a smooth and even beam field by combining the latest wide beam, true-tone SMD LED and diffuser plates. The large surface area of the panel produces a bright, surround output with clean, soft shadows and acts as a beautifying light on the body

DMX-512

Using the built-in industry standard DMX-512 interface, the GVM-YU200R can be integrated into more complex studio installations that require a standardized remote control method, such as news sets, talk shows or entertainment productions. The unit is equipped with two XLR-3P DMX ports (input/output – loop-through), allowing the panel to be connected to a DMX lighting console.
GVM-YU200R provides DMX control mode with 8bit precision and 16bit precision.

14

App Bluetooth remote control

Equipped with Bluetooth 5.0 mesh networking system, you can search “gvm_led” in the app store and download mobile app (IOS and Android) to remotely control the light;
Through the Bluetooth mesh networking system, users can control multiple yu200r devices at the same time. The intuitive control panel on the app makes the lighting scene layout simpler and faster, which can save a lot of time and energy;
Users can rename and group the connected lighting devices, so that the devices can better match different use scenarios.

CCT control mode

Including four quick adjustment functions of color temperature, dimming curve, red and green light supplement and light intensity, the operation is intuitive and concise;

15-2

RGB control mode

RGB mode includes color gamut and adjustment bar;
Color gamut selection: select RGB value by touching the color gamut with your fingers, so that the light color setting is faster and more intuitive;
Adjustment bar color selection: it can accurately adjust the changes of R, G and B in the range of 0-255 to make the light change more accurate;

HSI control mode

HSI mode includes color pickup by color pickup disk and color pickup by camera;
Pick up the color from the color dial: touch the color dial with your fingers to quickly and smoothly adjust hue (0 ~ 360 °) and sat (0 ~ 100%), so that the light has more colors;
Camera color pickup: obtain the hue and sat values corresponding to the environment through the camera anchor, control the color change of the light, and make your scene light effect closer to the environment;

15-4

Gel control mode

It includes 30 types of common color paper of Lee type and 30 types of common color paper of Rosco type, so as to quickly adapt to the light effect of different shooting environments;

Light source matching control mode

Provide 12 built-in common light source effects to make the light closer to life;

15-6

Light efficiency control mode

Provide 4 kinds of color light effects and 8 kinds of white light effects, which can switch more quickly in different shooting scenes;

Rhythm light mode:

Let the light move. The rhythm light effect is mainly to collect the rhythm of the rhythm and let the light change with the rhythm;
In live mode, you can turn on the microphone of your mobile phone to make the light follow the sound rhythm of your current environment;

15-8

Intuitive user interface

Gvm-YU200R uses intuitive panel control interface to operate lamps easily and quickly. The digital display displays all useful information for the user to adjust and customize the required values.
The three large selection knobs can be easily handled (even with gloves) to fine tune the required parameters.

Active cooling system

Compared with traditional light sources, LED lamps have higher efficiency. However, LED light source will generate a lot of heat in some cases. Generally speaking, the colder the environment, the higher the light output of LED. Higher temperatures usually reduce the light output. Under warmer environment and higher current, the temperature of semiconductor components will rise. Under constant current, the light output of LED changes with the change of junction temperature. Good and efficient thermal management helps to reduce the heat accumulation inside and around the LED, so as to significantly prolong the service life of the LED, improve the light output of the LED and minimize the impact on the temperature of the shooting site.
Yu series adopts the design of multiple heat dissipation metal sheets and heat conduction copper tubes, which can greatly increase the contact area with air, maximize the heat transfer to the outside and improve the heat dissipation efficiency.
In addition, when the ambient temperature or the total heat generated by the LED is very high, we can increase the total heat from the equipment by forcing air through it. The dual fan system allows the air to form convection and maximize air circulation. At the same time, adding a fan has an additional advantage, that is, it can remove any concentration of static hot air (hot spot), so that the whole LED system can be maintained at a reasonable temperature for a long time.

Ultra quiet design

Adopting the well-designed mute system, gvm-yu series boldly introduces a new design, with built-in cooling ultra mute fan. The advantage of dual fan is that it can effectively cool down without high speed. When the light brightness is 100%, even if the two fans rotate at the same time, the noise will not exceed 40dB (when the ambient noise is ≤ 22dB), and the sound can hardly be heard. There is no need to adjust the lighting position to adapt to the noise.

Various optical accessories

Removable thermoplastic diffusion filters soften the beam and smooth shadows.
Optional 4-piece doors and windows can be used to control light propagation and reduce light overflow.
The optional liner softbox can be used to enhance the output of the panel. By adding a front diffuser to the softbox, the panel becomes a wider softlight source. The honeycomb front layer can be used to reduce the beam angle and reduce overflow.

19

Multiple power supply options

Gvm-YU200R can supply power directly from AC 100-240V power socket, or it can be used for external DC power supply through 24-33v xlr-2p port

Transport box

Gvm-YU200R panel and all its main components can be kept in the optional aluminum alloy box. The enclosed foam liner can effectively protect the lamp body and accessories, facilitating transportation and safe storage

21
