- Power: 100W
- Max Output: 2590 lux @ 1m
- Weight: 0.95kg (lamp), 0.44kg (controller)

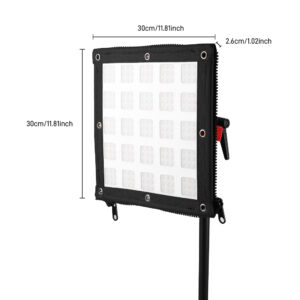

- Dimensions: 300x300x26mm
- Best For: Large-area lighting, film sets, and high-output requirements.

Slim & Lightweight — Built for Flexible Setups

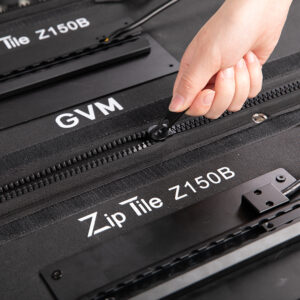

Quick-Zip Modular Design for Effortless Expansion
Fast Mounting for Instant Use

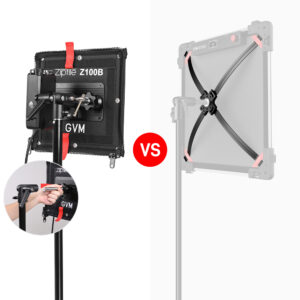

No Extra Rigging Required – Streamlined by Design

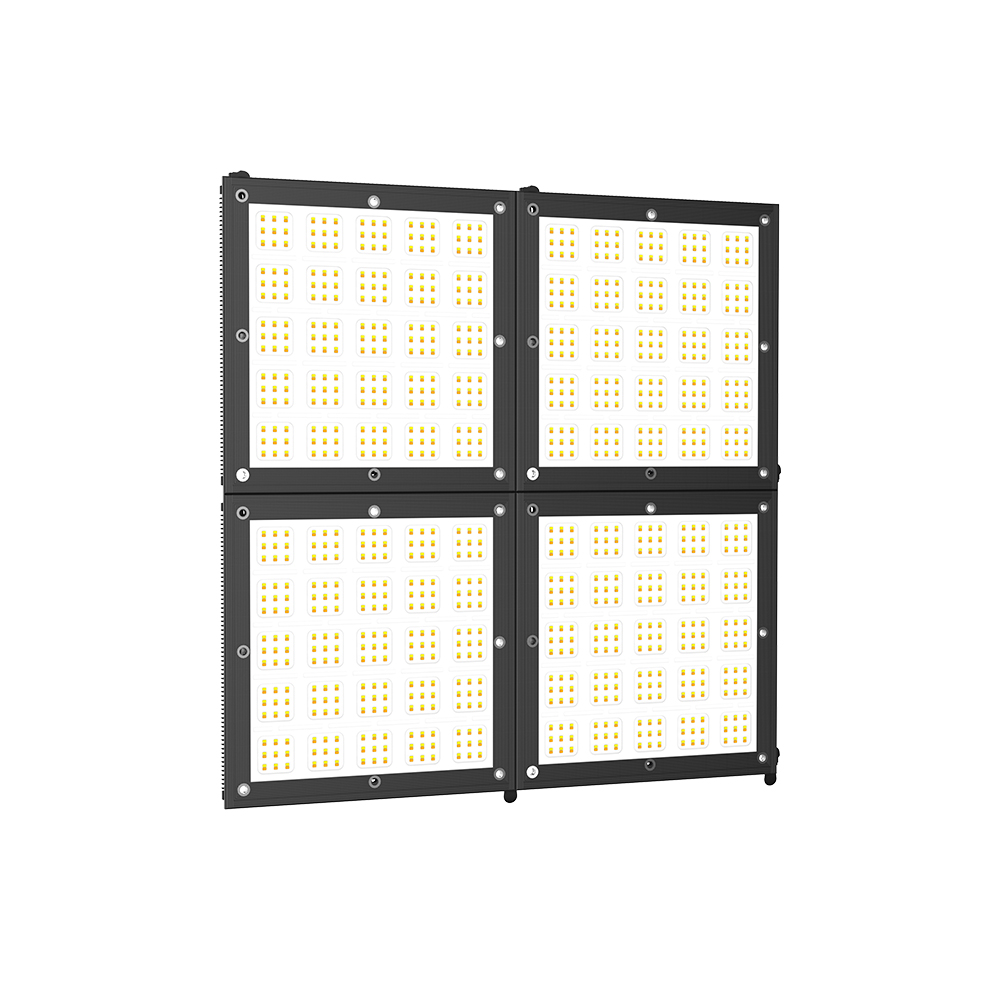

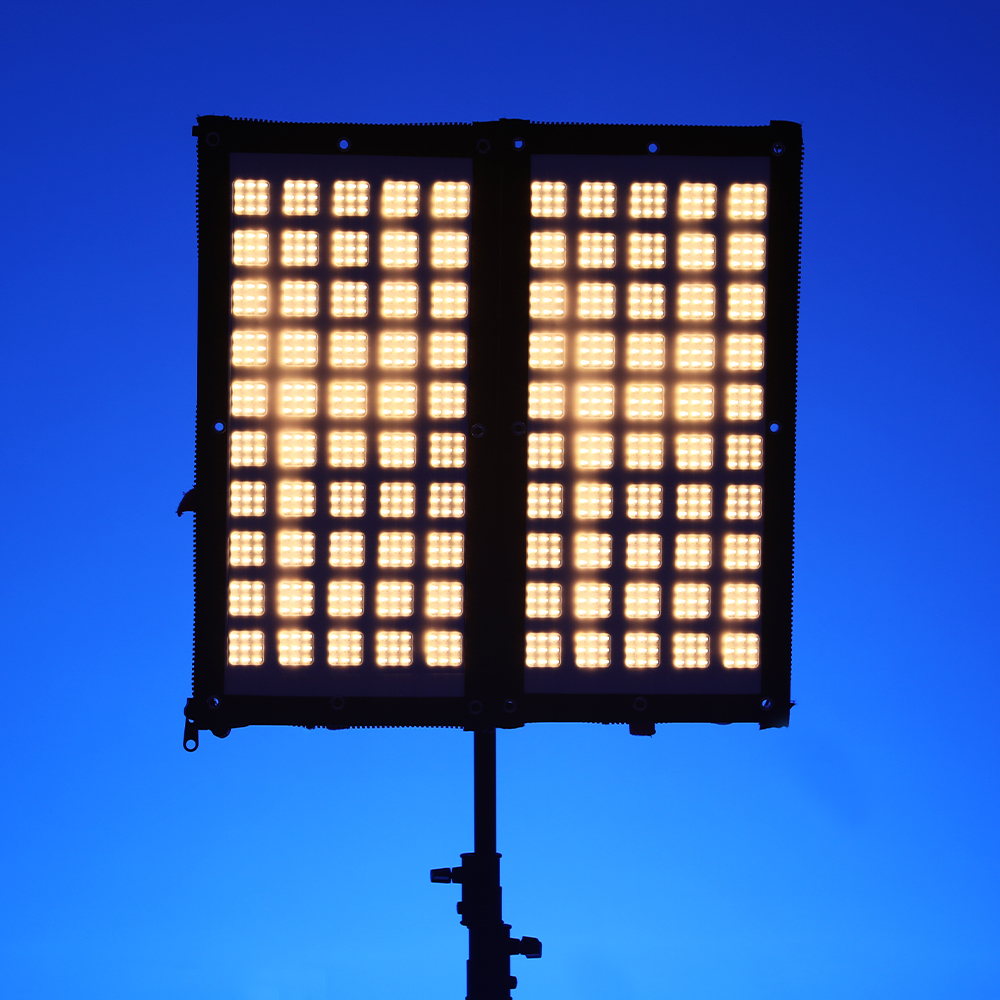

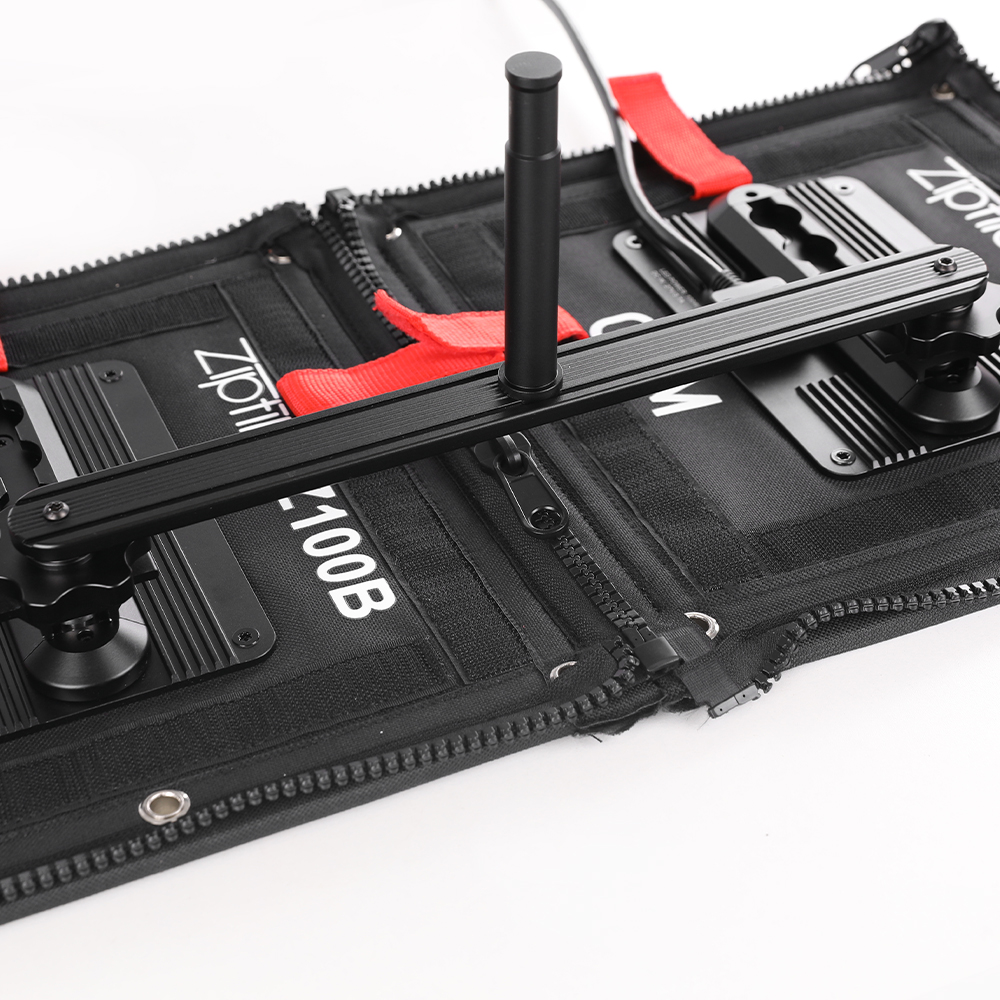

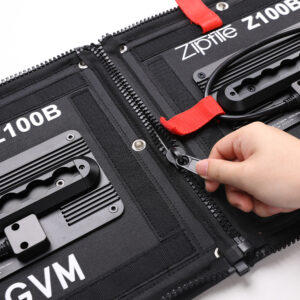

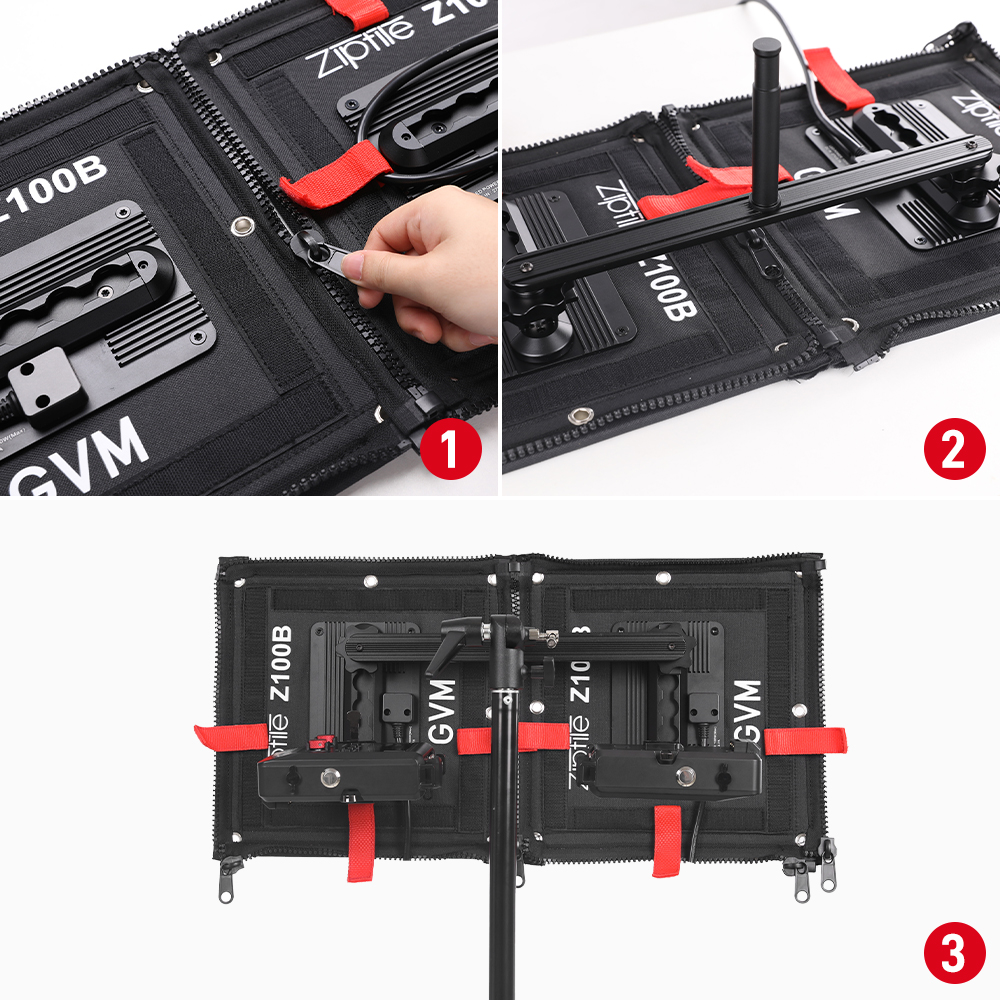

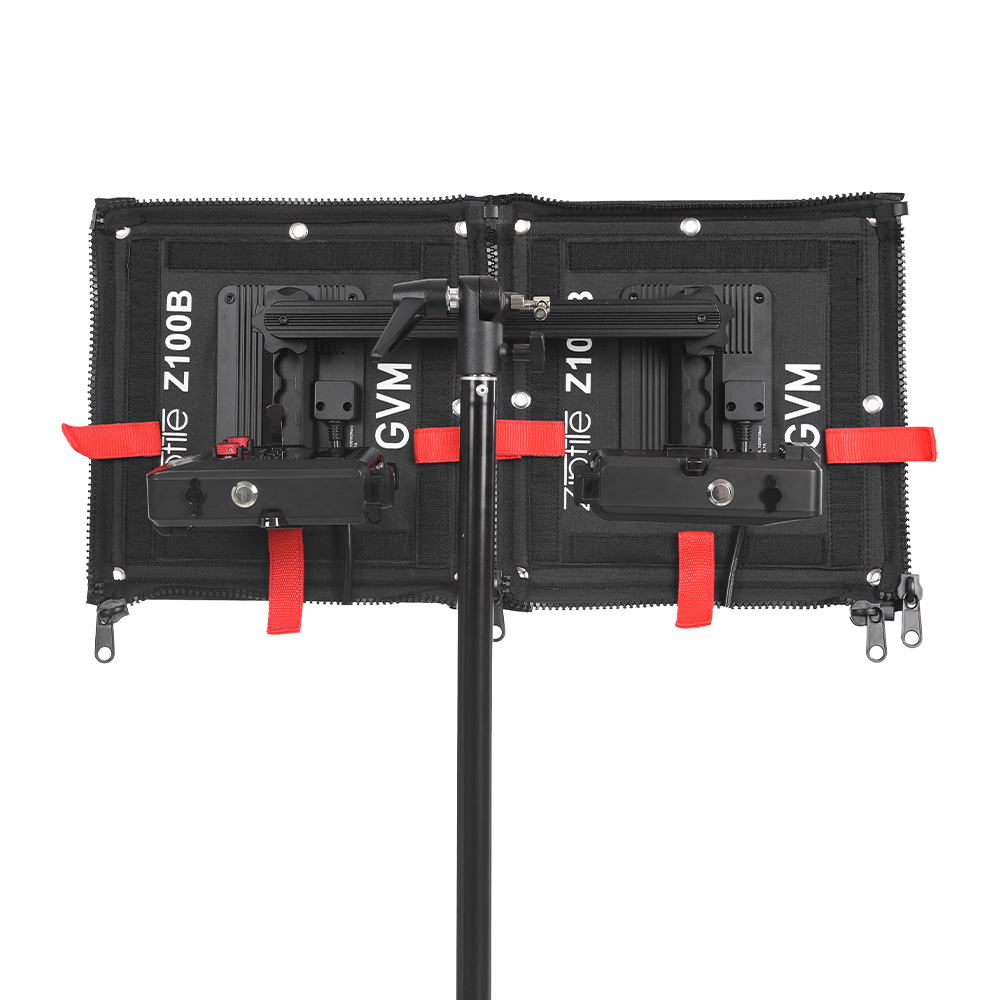

Z100B Dual Lamp Splicing
The GVM Ziptile Series features a user-friendly modular design that makes connecting multiple lights quick and easy. With a simple and secure connection system, you can easily create broader, softer, and more immersive lighting effects that perfectly suit your shooting needs.

Quickly achieve splicing

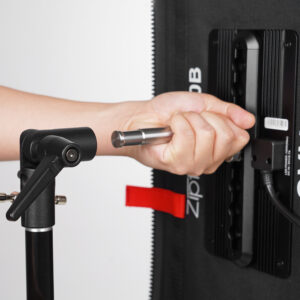

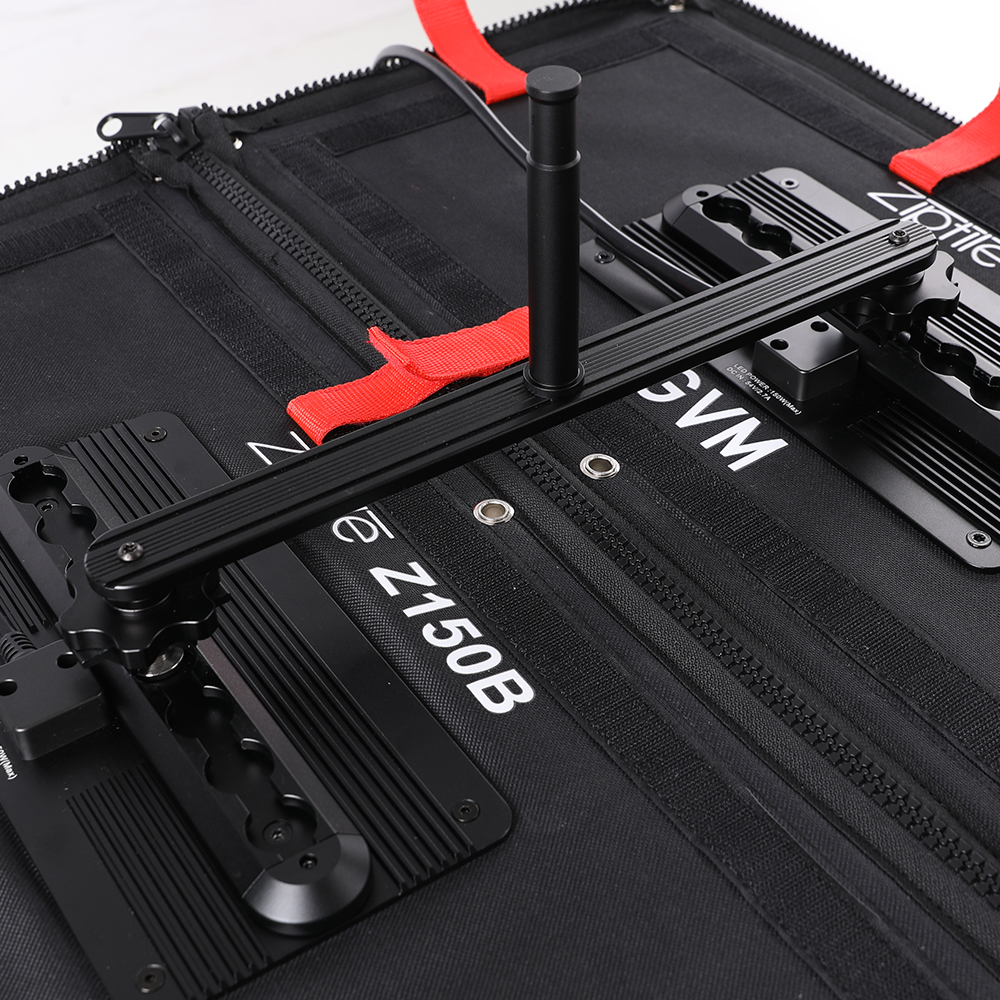

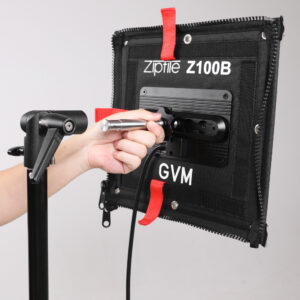

One-Step Quick Mounting for Instant Lighting

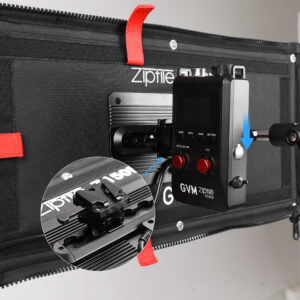

Integrated Control Box – Clean, Convenient Operation
Ultra-Slim Powerhouse for Creative Setups

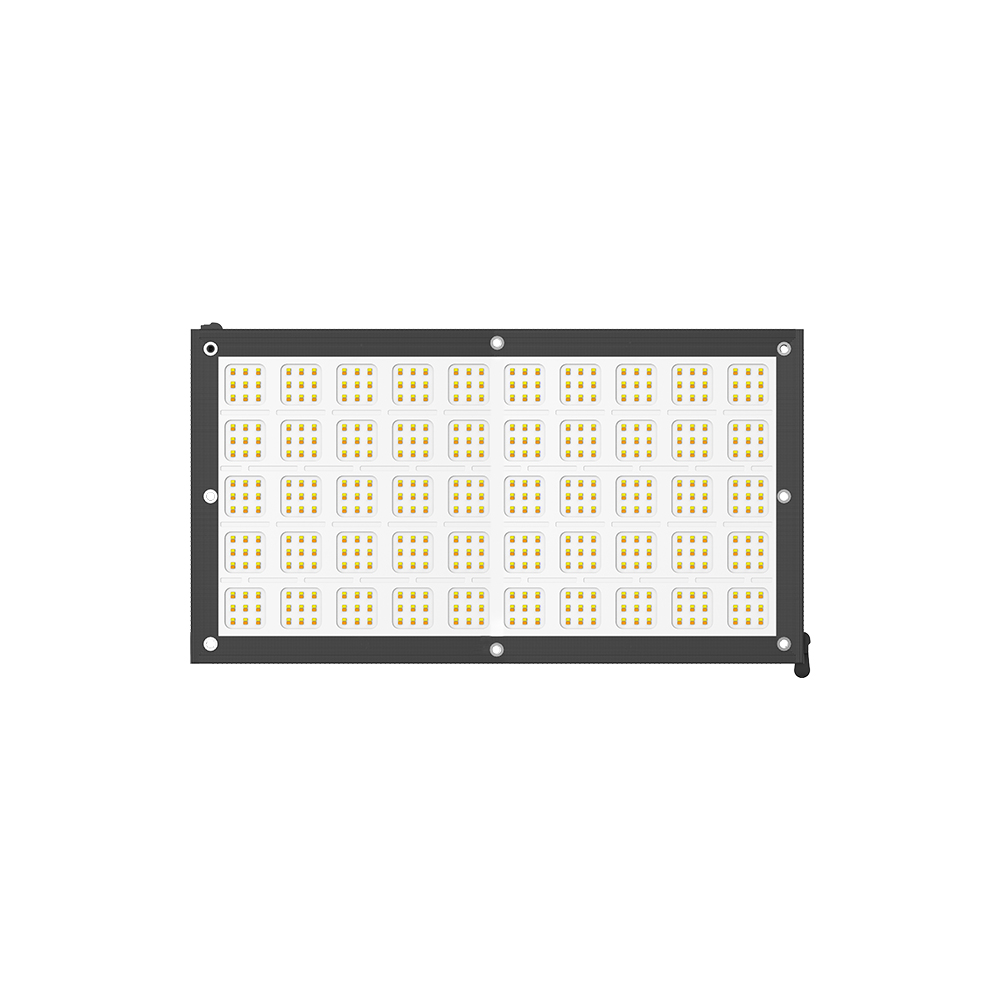

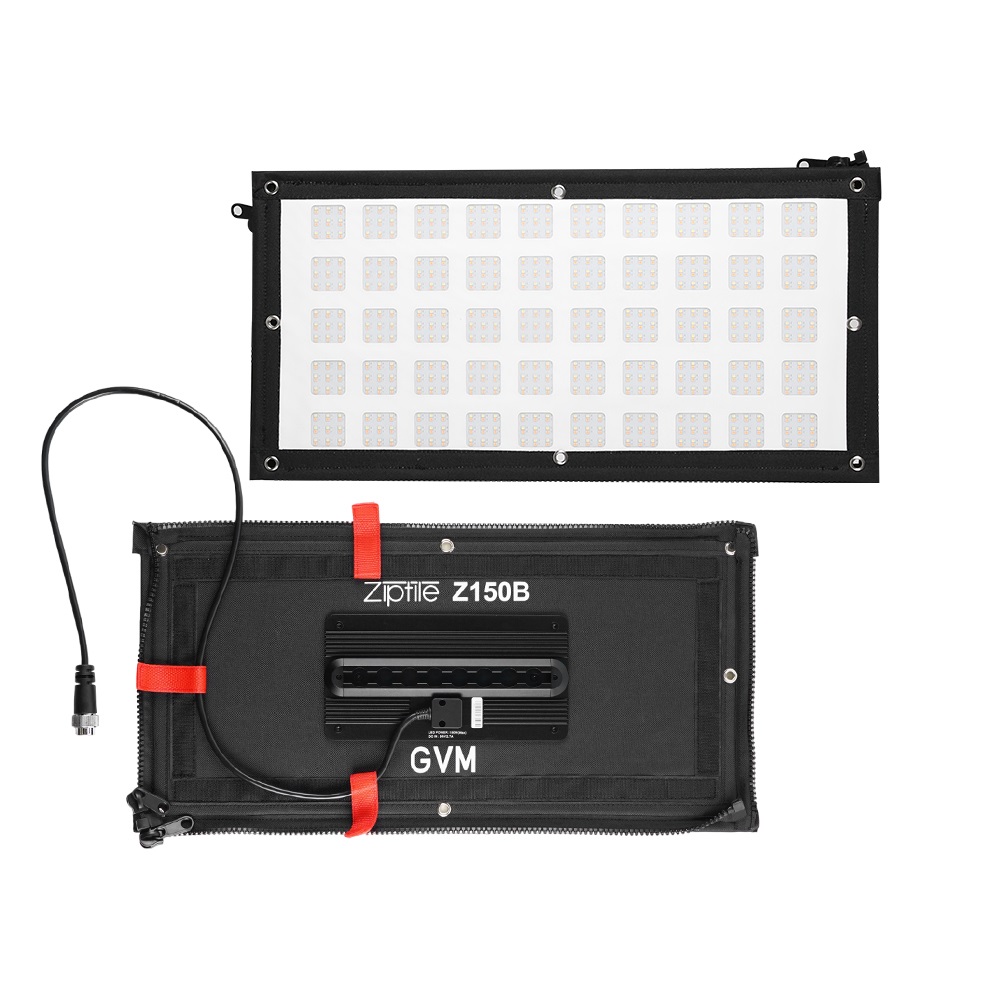

Z150B
- Power: 150W
- Max Output: 4430 lux @ 1m
- Weight: 1.48kg (lamp), 0.44kg (controller)

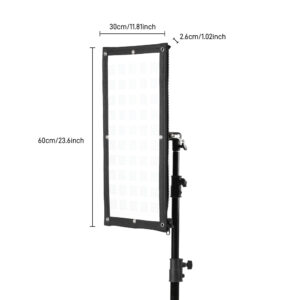

- Dimensions: 600x300x26mm
- Best For: Large-area lighting, film sets, and high-output requirements.

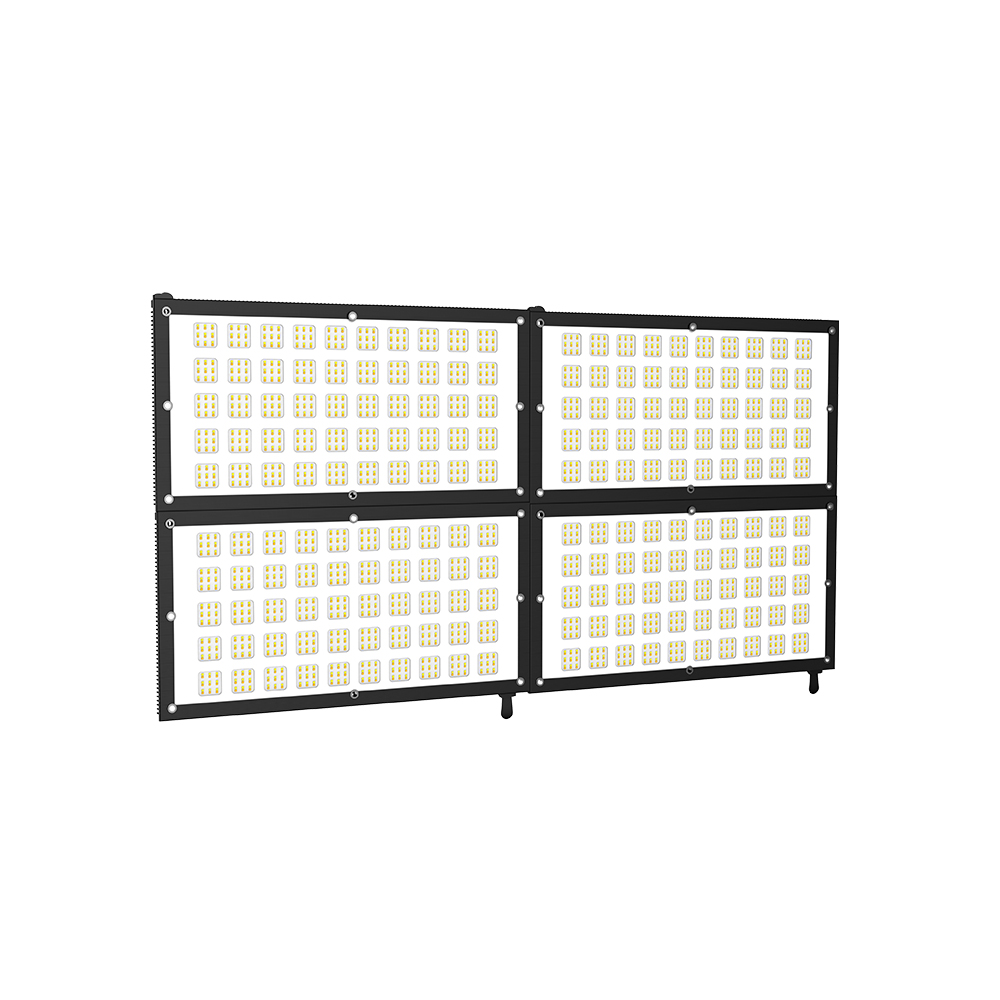

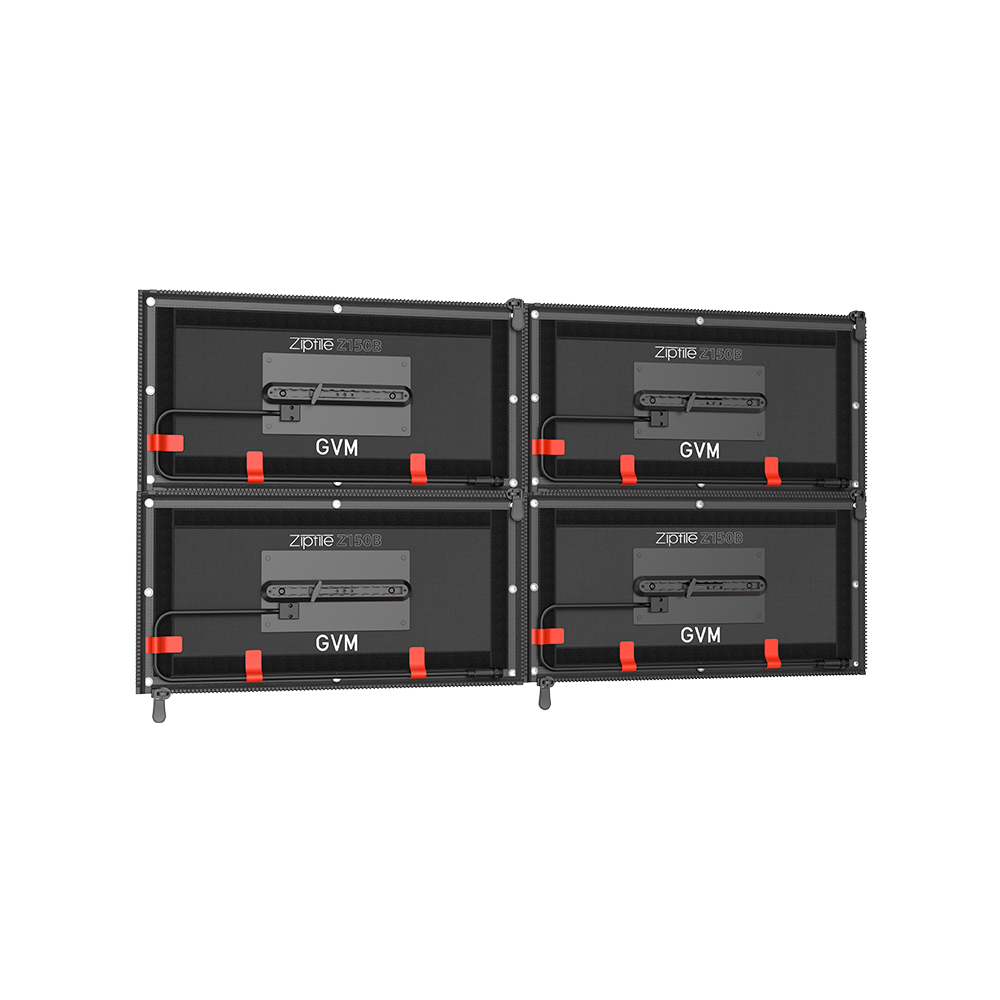

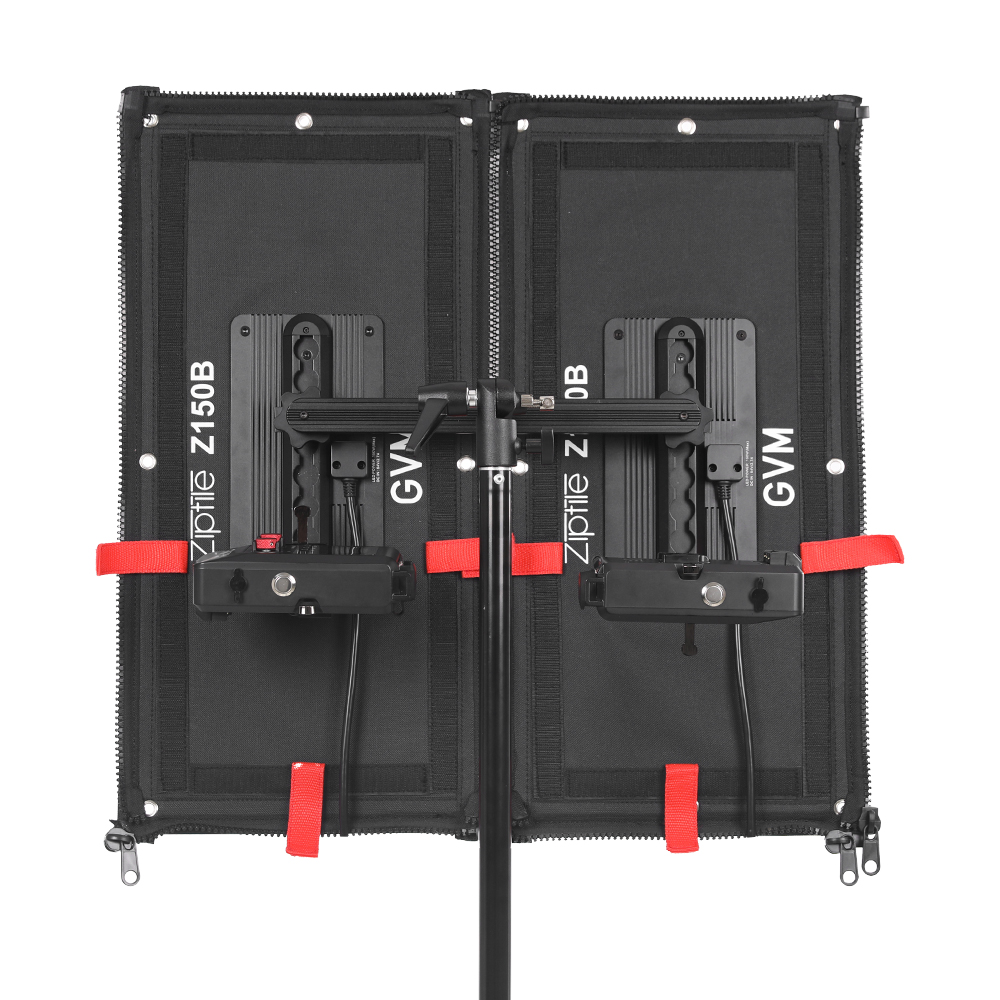

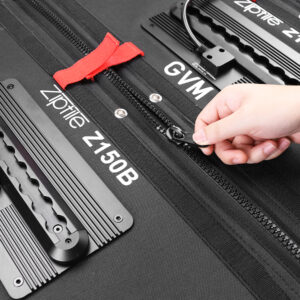

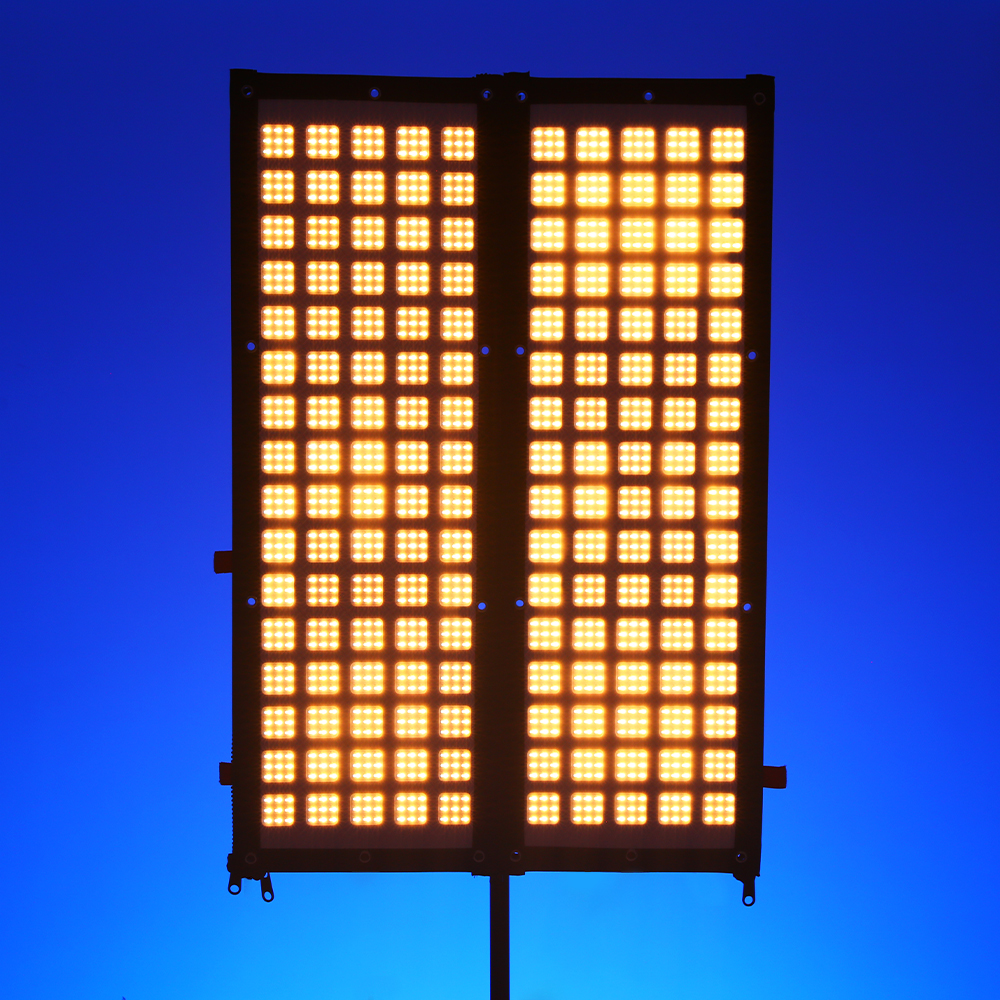

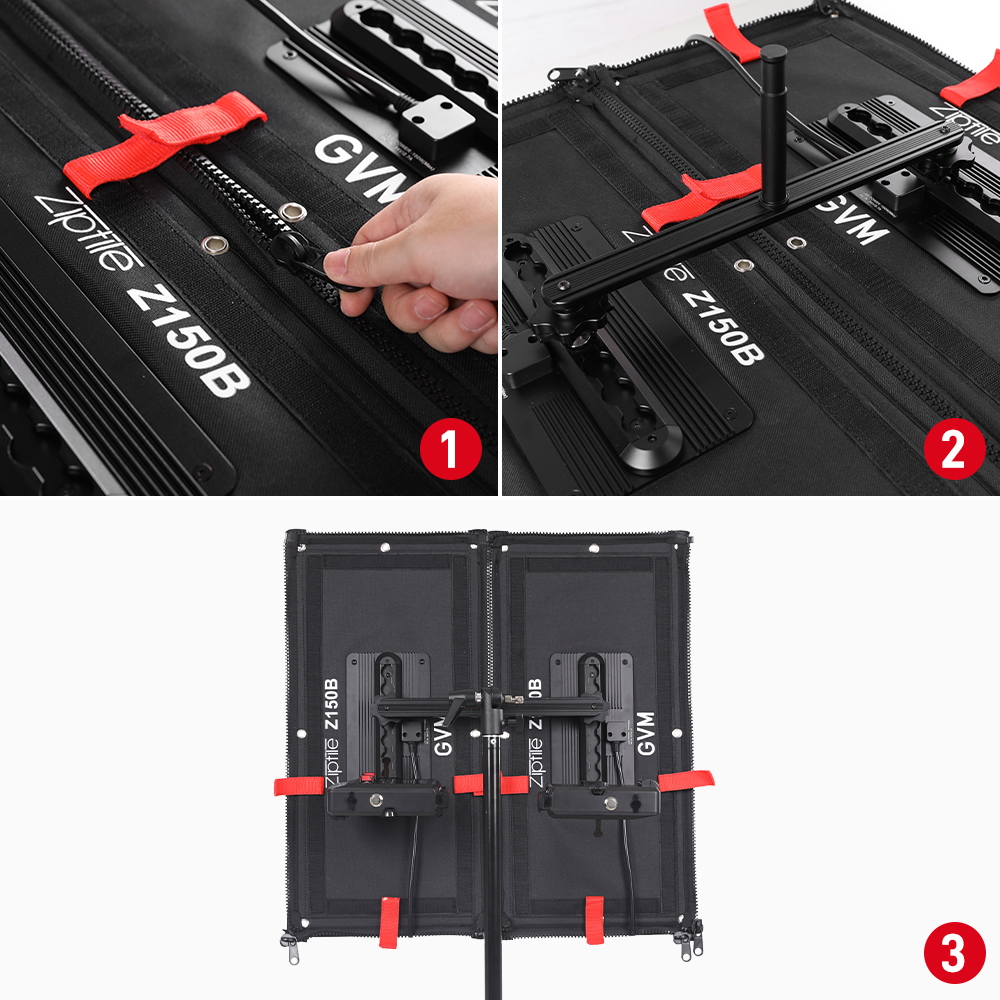

Z150B Dual Lamp Splicing
The GVM Ziptile Series features a user-friendly modular design that makes connecting multiple lights quick and easy. With a simple and secure connection system, you can easily create broader, softer, and more immersive lighting effects that perfectly suit your shooting needs.

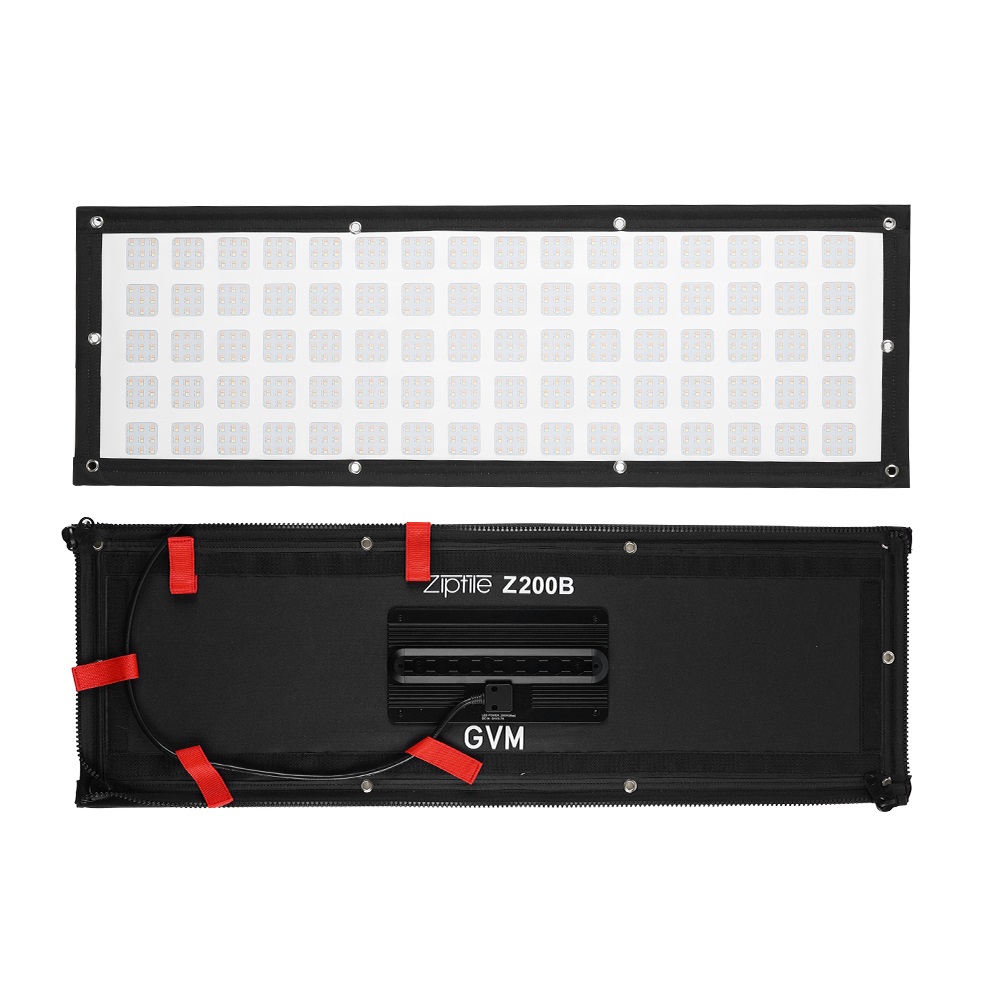

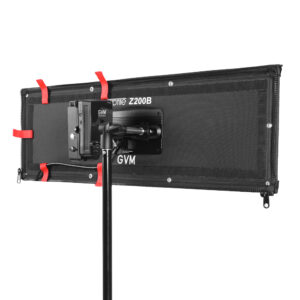

Z200B
- Power: 200W
- Max Output: 5840 lux @ 1m
- Weight: 1.97kg (lamp), 0.44kg (controller)

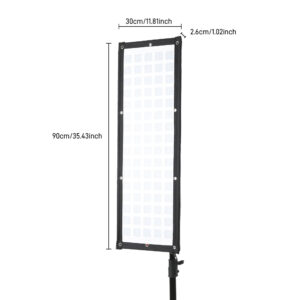

- Dimensions: 900x300x26mm
- Best For: Large-area lighting, film sets, and high-output requirements.

Ultra-thin design, only 26 mm thick
Integrated Zipper Link for Instant Light Expansion
One-Step Quick Mounting for Instant Lighting
Dual Power Options for Maximum Flexibility

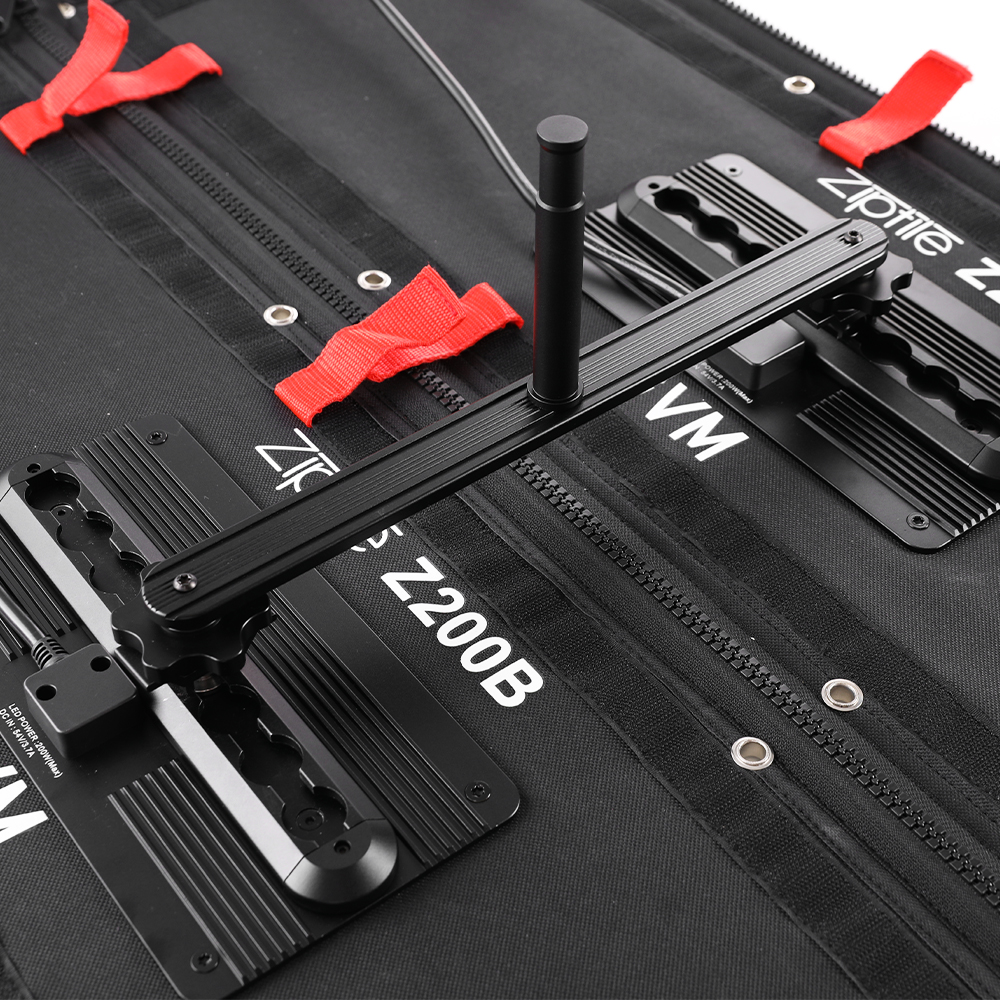

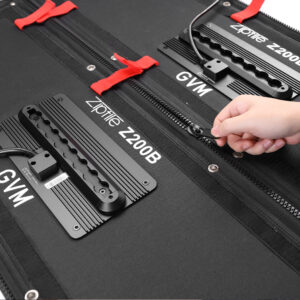

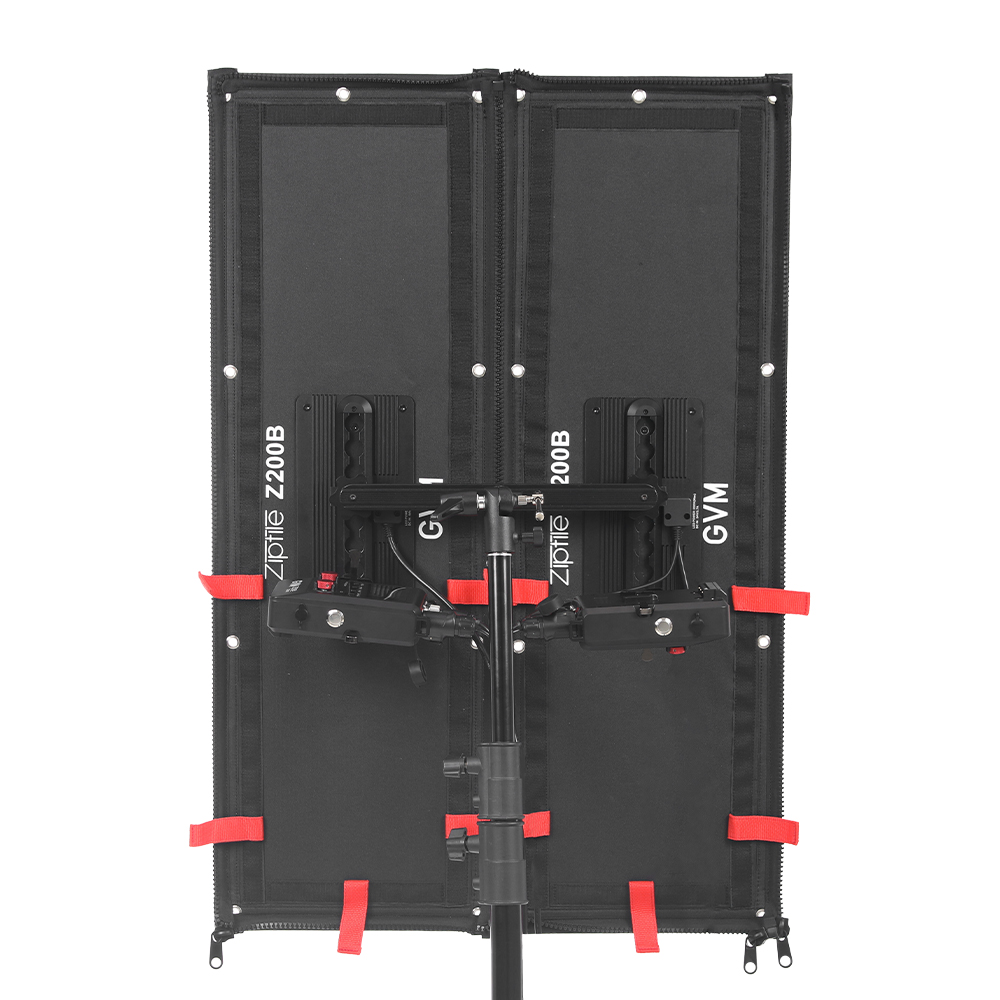

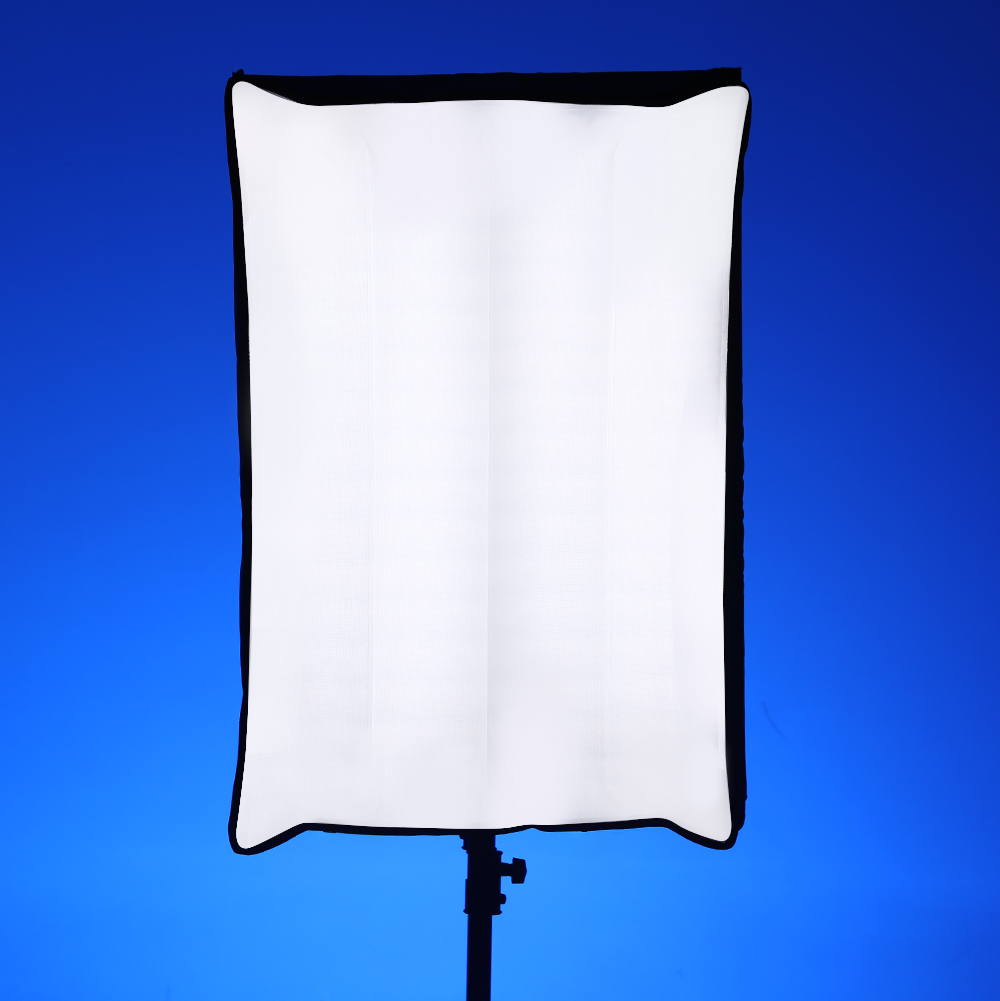

Z200B Dual Lamp Splicing
The GVM Ziptile Series features a user-friendly modular design that makes connecting multiple lights quick and easy. With a simple and secure connection system, you can easily create broader, softer, and more immersive lighting effects that perfectly suit your shooting needs.





CORE ADVANTAGE

Modular Zip System
ZipTiles feature an innovative zipper design that allows seamless connections between panels, creating stable, customizable light arrays. Build the perfect light setup for every project—from small studio shoots to large-scale productions.


Featherlight Design
Weighing as little as 876 grams per panel, ZipTiles are easy to transport and mount anywhere. Their slim profile (just 24mm thick) ensures they blend seamlessly into any environment.


Color Accuracy You Can Trust
With a 97+ CRI and 97 TLCI rating, ZipTiles deliver exceptional color fidelity.Adjust the CCT smoothly from warm 2700K to cool 6800K, ensuring accurate skin tones and natural hues in every shot.


Brightness Beyond Expectations
Despite their ultra-thin design, ZipTiles pack a punch with outputs ranging from 2750 lux to 5910 lux at 1 meter. No compromise on power, no matter how compact the setup.




Specification

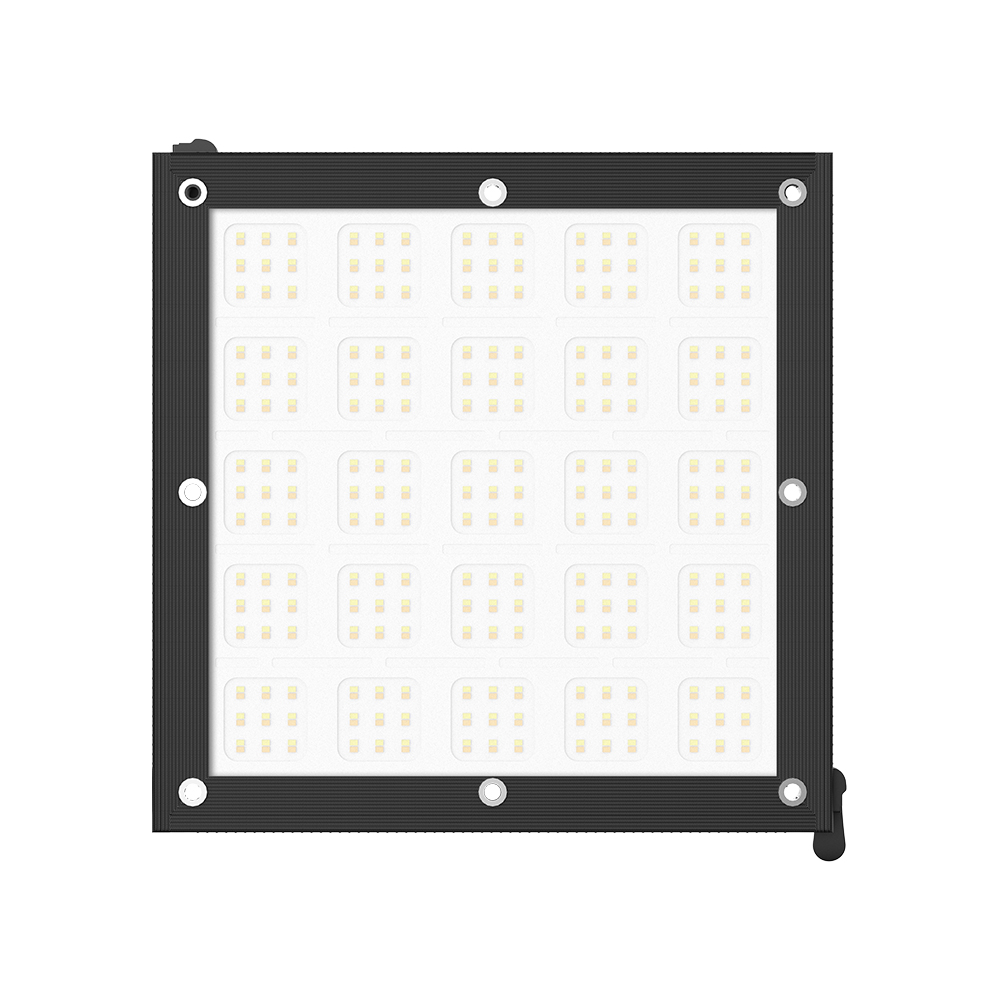

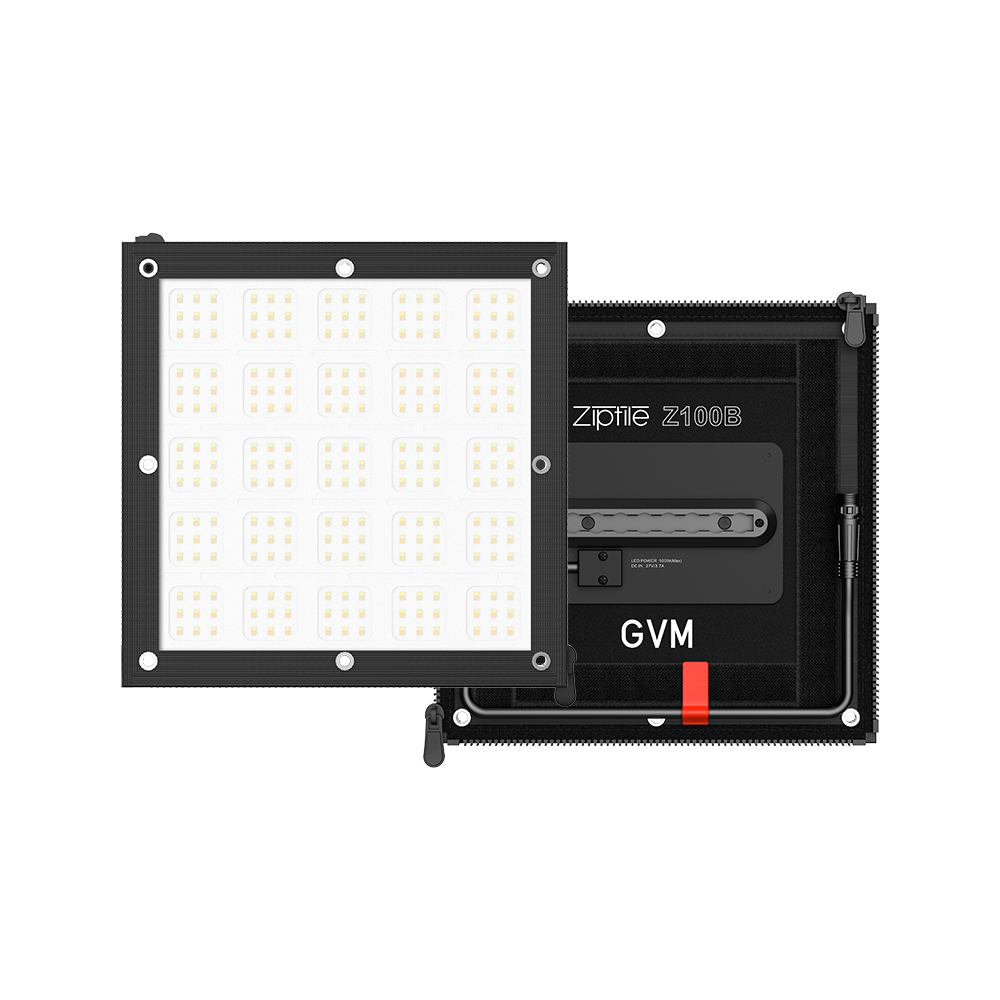

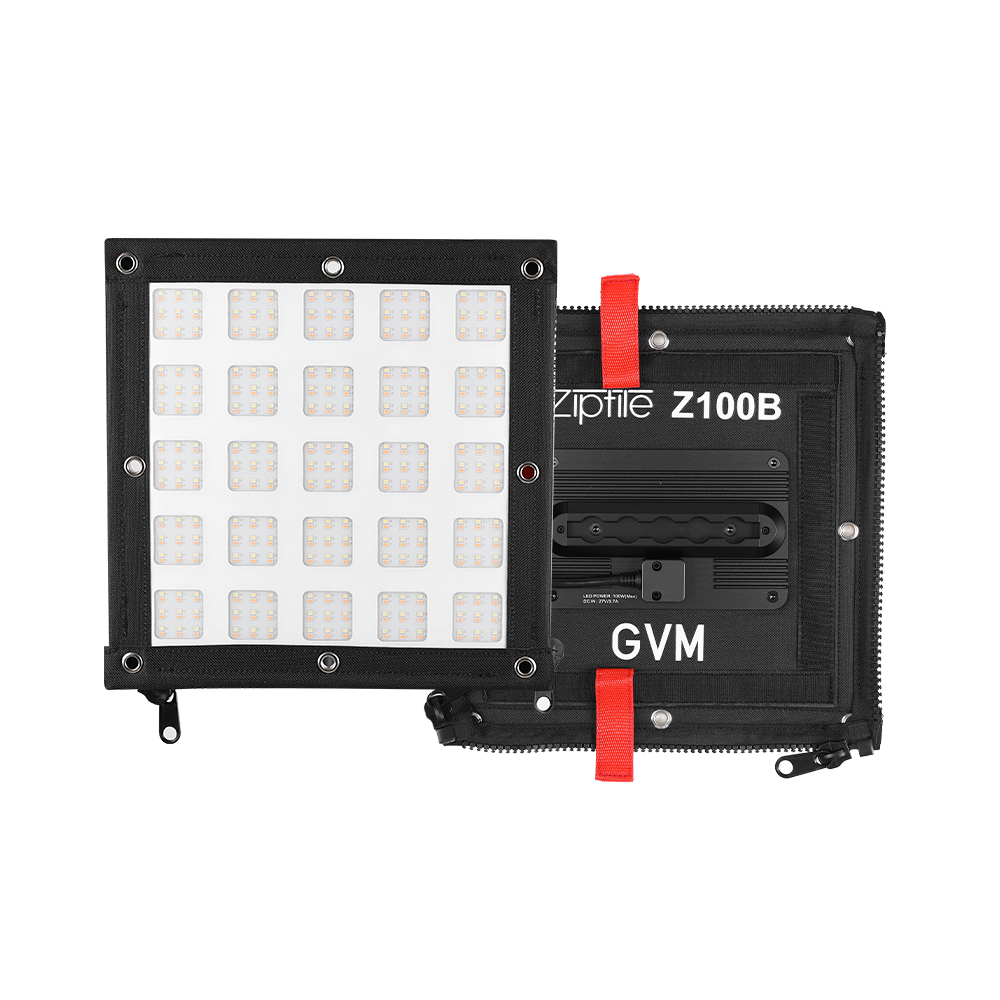

- Z100B
- Power: 100W
- Max Output: Open face 2730 lux@1m
- LED Engine: Bi-Color
- CCT Range: 2700-6800K
- Color Accuracy: 97+ CRI, 97 TLCI
- Modes: CCT, Source Matching, Effects(Only APP provide)
- Dimming: Flicker free 0% to 100% in 0.01% steps
- Control: Built-In controller, Bluetooth,RF(Radio Frequency)
-
Connectors:
1x DC In (32V/3.5A); 1x DC OUT (27V/3.9 MAX); 1x USB type C - AC Voltage: 100 - 240 V~, 50/60Hz
- DC Voltage: 46V/9.1A
- Housing Material: Lamp:Cloth, aluminum alloy, plastic ABS; controller: Aluminum+Engineering Plastics
- Dimensions: 300*300*24mm
- Weight: Lamp: 0.8KG; Controller:0.4KG
- Controller + Ballast: Controller and adapter are separate
- Z150B
- Power: 150W
- Max Output: Open face 4450 lux@1m
- LED Engine: Bi-Color
- CCT Range: 2700-6800K
- Color Accuracy: 97+ CRI, 97 TLCI
- Modes: CCT, Source Matching, Effects(Only APP provide)
- Dimming: Flicker free 0% to 100% in 0.01% steps
- Control: Built-In controller, Bluetooth,RF(Radio Frequency)
-
Connectors:
1x DC In (60V/2.5A); 1x DC OUT (54V/2.7A MAX); 1x USB type C - AC Voltage: 100 - 240 V~, 50/60Hz
- DC Voltage: 46V/9.1A
- Housing Material: Lamp:Cloth, aluminum alloy, plastic ABS; controller: Aluminum+Engineering Plastics
- Dimensions: 600*300*24mm
- Weight: Lamp: 1.34KG; Controller:0.4KG
- Controller + Ballast: Controller and adapter are separate
- Z200B
- Power: 200W
- Max Output: Open face 5800 lux@1m
- LED Engine: Bi-Color
- CCT Range: 2700-6800K
- Color Accuracy: 97+ CRI, 97 TLCI
- Modes: CCT, Source Matching, Effects(Only APP provide)
- Dimming: Flicker free 0% to 100% in 0.01% steps
- Control: Built-In controller, Bluetooth,RF(Radio Frequency)
-
Connectors:
1x DC In (60V/3.5A); 1x DC OUT (54V/3.7A MAX); 1x USB type C - AC Voltage: 100 - 240 V~, 50/60Hz
- DC Voltage: 46V/9.1A
- Housing Material: Lamp:Cloth, aluminum alloy, plastic ABS; controller: Aluminum+Engineering Plastics
- Dimensions: 900*300*24mm
- Weight: Lamp: 1.95KG; Controller:0.4KG
- Controller + Ballast: Controller and adapter are separate
