GVM SD600D Color Led Video Lights High Power Studio Monolight


Product Overview


GVM-LED Studio light-SD600D is the ultimate color powerful LED dual spotlight
Power up to 600W with standard lampshade.
After installation, the light can be too strong, so that the light can be concentrated.
Easily control the fill light, allowing you to shoot the desired effect on the spot.
Features robust construction and efficient update capability
Therefore, it can provide stable and consistent high output for a long time in the long-term output.
And GVM-SD600D has a light and compact design
The size itself weighs 293x275x160mm, originally 3.8kg
One of the most common features of its kind, suitable for use on most trips.

High quality Bi-color temperature lamp beads

GVM-SD600D has a wider range of color temperature than conventional spotlights
2700K~7500K Bi-color temperature stepless control
CRI 97+ restores the true colors of beauty and has more realistic color reproduction
Make the captured picture more vivid, the color of the characters is more realistic, and the texture of light and shadow is better
Cool and warm Bi-color mode, let your works have more color imagination, and make creative videos easily
Consuming only 600W of power, it produces a bright, daylight-balanced, uniform scene, about the same as the equivalent output of a 4000W+ tungsten lamp.


Powerful primary color COB lamp beads

The upgraded SD series adopts the latest high-quality COB LED lamp beads specially developed for the photo and video industry
Delivers impressive ultra-bright, sun-like balanced output from a single 600W COB LED lamp bead.
High color rendering index up to CRI 97+
This enables accurate color rendering on-camera, the most realistic reproduction of object colors.
In order to obtain professional results, it also provides you with natural and vivid shooting results.
It can ensure that the color layout in the matrix system and the CCT mixing in the beam area are uniform without color separation.

Thousand step dimming accuracy

The adjustment range of SD600D brightness is 0.1% – 100.0%, and the user can adjust the brightness accurately to 0.1%;Finer.dimming accuracy can provide smoother dimming process and more accurate color; With the new algorithm model of GVM, the light intensity can be adjusted step by step, and the dimming process can be completed quickly and smoothly.

Dimming curve

GVM-SD600D has four dimming curves (linear/logarithmic/exponential/S curves) to be selected to meet the technical requirements of studio devices, such as TV news and entertainment production sets. High standard and professional light control technology is also the best choice for variety shooting and movie making

Constant power 600W

Conventional Bi-color temperature spotlights use two different lamp beads to adjust the color temperature, which results in different powers for different color temperatures. The color temperature power in the middle is often high, and the power is low when the color temperature is low and the color temperature is high. Makes the brightness of different color temperatures different. SD600D has upgraded the algorithm. While adjusting the color temperature of the two lamp beads, it will also automatically calculate the appropriate power, so that the power of different color temperatures is consistent. While adjusting the color temperature, it also keeps the brightness unchanged. In the case of maximum brightness, the constant power of 600W can be kept unchanged


CCT mode

White light color temperature adjustment mode, adjustable light intensity and color temperature. CCT (Related Color Temperature) mode allows accurate color temperature adjustment from a comfortable warm color of 2700K to a dark sky blue of 7500K to match any lighting conditions, such as warm shades of a terrible sunset, cool shades of bright sunlight in summer, or blue moonlight in a clear, dark sky. The green/magenta correction function in CCT mode allows fine-tuning matching with other HMI, LED or fluorescent lamps or accurate color balancing for different camera sensors.


Light Matching Mode

This mode offers 12 different light source types and saves a lot of adjustment time when you need a particular light source

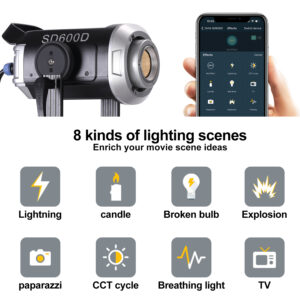

White light effect mode

This mode provides eight white light effects: lightning, CCT cycle, candle, bad light bulb, TV, paparazzi, explosion, breathing light

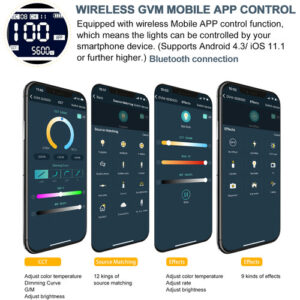

APP intelligent control system

SD600D has mobile phone Bluetooth APP control function
Lights can be controlled via smart mobile devices
Search APP “GVM_LED” from major APP stores or manuals

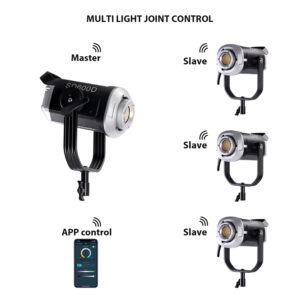

One or more SD600D devices can be controlled simultaneously.
The APP can also control the lighting effects.
This saves a lot of time and effort when operating multiple SD600Ds in the field


Using the built-in industry standard DMX-512 interface, the gvm-sd600d can be integrated into more complex studio installations that require standardized remote control methods, such as news sets, talk shows or entertainment production. The unit is equipped with two xlr-3p DMX ports (input / output loop) that allow the panel to be connected to the DMX lighting console.

Gvm-SD600D provides DMX control mode with 8bit precision and 16bit precision.

Intuitive user interface

GVM-SD600D uses an intuitive panel control interface to operate the lights quickly and easily. The digital display displays all the useful information for the user to adjust and customize the desired values.

Three large selection knobs can be easily handled (even with gloves) to fine-tune required parameters.

Excellent excellent brightness

High power 600W LED video light.
Brightness under bare bulb: 60000lux/0.5m, 19000lux/1m
With standard lampshade brightness: 320000lux/0.5m, 130000lux/1m
An ultra-high color rendering index of 97+ helps restore the truest colors.
And can enrich the cold and warm light and provide the most natural light perception.
Make this luminaire suitable for studio and large-scale film crews on-site use.
Provide you with vivid shooting effects and provide users with a hassle-free experience


180° Rotation

GVM-SD600D can rotate 180° while shooting
Not only can you design the lighting effect you want
It can also effectively control the light dispersion
In the scene theater, movie theater, short video shooting, live broadcast, etc.
You can quickly adjust to the light effect you want

With battery board adapter

SD600D with battery board adapter
As long as it is plugged in, it can be powered by a V-type battery.
It is convenient for photographers to fill in light for outdoor shooting.
Powerful 600W COB LED Lamp Beads
Create stable and efficient continuous output optical resources.
Make your photos or videos brighter than you expect and without the flash.

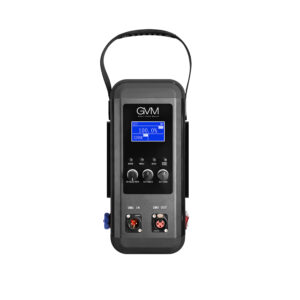

Built-in high-definition digital display for easy access to dimmable parameters
Used to display useful information such as brightness value, battery level, DMX channel number and radio channel for remote operation


Ultra quiet design

Adopting the well-designed mute system, gvm-SD series boldly introduces a new design, with built-in cooling ultra mute fan. The advantage of dual fan is that it can effectively cool down without high speed. When the light brightness is 100%, even if the two fans rotate at the same time, the noise will not exceed 40dB (when the ambient noise is ≤ 22dB), and the sound can hardly be heard. There is no need to adjust the lighting position to adapt to the noise.

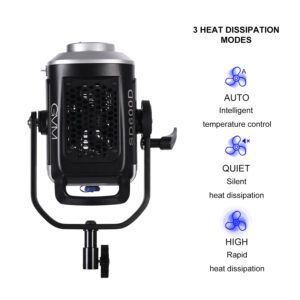

Three powerful cooling methods, quiet design

This LED spotlight is also equipped with a built-in high-efficiency cooling fan
The fan adopts a stepped air intake design
Three powerful cooling methods:
Intelligent temperature control;
Silent heat dissipation;
Rapid heat dissipation;
It can effectively help COB lamp beads to dissipate heat better and effectively improve complex heat dissipation.
If the shooting environment is too hot, the COB lamp head can be better protected.
Extend the life of the light.
And the fan is silent when dissipating heat, so you don’t have to worry about interfering with on-site shooting and production
